firing order

B

brewzalot

501 Club
This diagram is from the resources section. If firing order is 1342 wouldn't this drawing have the 3 and 4 mixed up, or am I missing something?
Thanks,
Tim


firing order.jpg

Hi,
There are pictures of the spark plug wires plugged into the distributor, and magneto caps, showing the firing order, in some or most years of the Cub operator's manuals.

Glen said:
Hi,
There are pictures of the spark plug wires plugged into the distributor, and magneto caps, showing the firing order, in some or most years of the Cub operator's manuals.
Click to expand...
That's good to know Glen, but my 58 operators manual doesn't show or mention firing order. My service manual does list the firing order in the specs but no picture. I really like these wiring diagrams and is what I'm using to rewire my tractor. I was just concerned that anyone using them is going to assume the diagrams are correct.
Its a little thing but firing order is kind of important.

Side note- why would the engineers cast the firing order on the opposite side of the engine from the distributor:unsure:

Thanks
Tim

Hi,
The diagram above is corrected at the distributor cap, but the numbers at the engine for the cylinder numbering is not right. 3 and 4 are reversed there.

Last edited:
brewzalot said:
but my 58 operators manual doesn't show or mention firing order.
Click to expand...
IH changed the operator's manuals for Cubs in about 1958. Info was removed from the operator's manual, and put in a separate maintenance manual. I don't know if you have the maintenance manual, here it is below, it is in Resources at the top of the page.
It has info in it for other models of tractors.
https://farmallcub.com/community/re...b-lo-boy-140-240-and-340-6-13-58-26b-ocr.184/

The 1955 Cub operator's manual on here has 84 pages.
The 1959 Cub and LoBoy operator's manual on here has 50 pages.

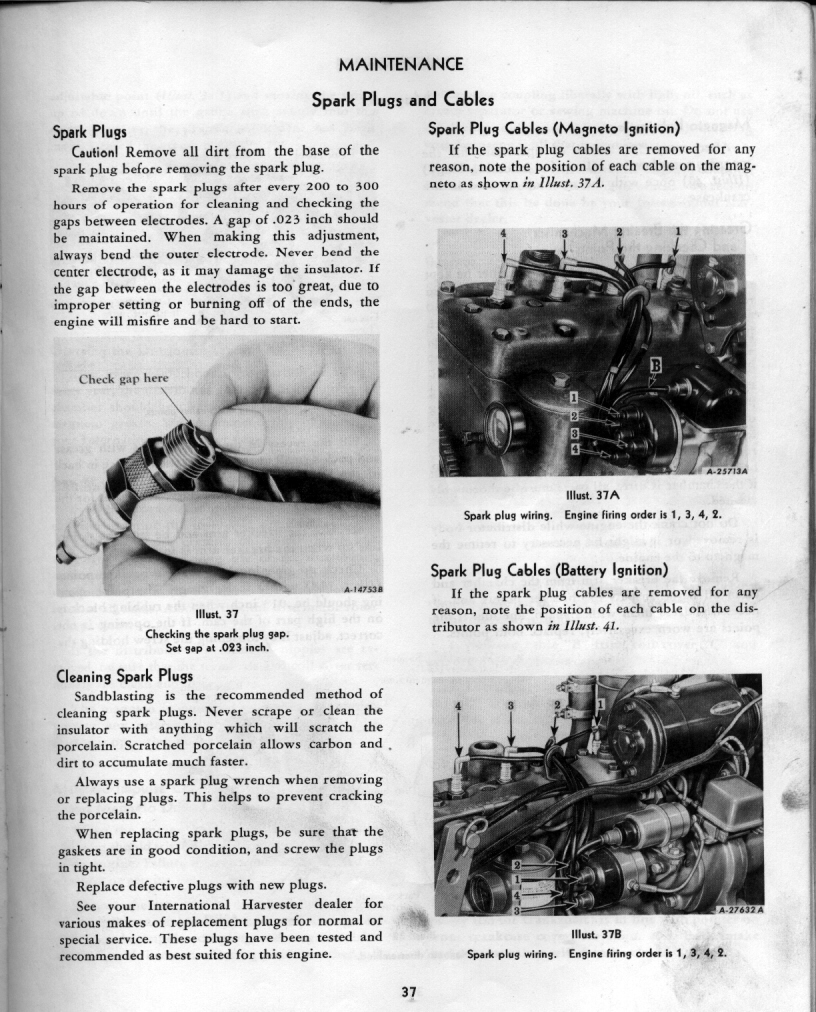

Below is a page from the 1955 Cub operator's manual showing the firing order, and spark plug cables for the Battery Ignition unit, at the bottom picture.

Glen said:
IH changed the operator's manuals for Cubs in about 1958. Info was removed from the operator's manual, and put in a separate maintenance manual. I don't know if you have the maintenance manual, here it is below, it is in Resources at the top of the page.
It has info in it for other models of tractors.
https://farmallcub.com/community/re...b-lo-boy-140-240-and-340-6-13-58-26b-ocr.184/

The 1955 Cub operator's manual on here has 84 pages.
The 1959 Cub and LoBoy operator's manual on here has 50 pages.
Below is a page from the 1955 Cub operator's manual showing the firing order, and spark plug cables for the Battery Ignition unit, at the bottom picture.
Click to expand...
Glen, the information you provided is great- thanks. Stan is on the right track, I'm simply looking for a way to correct or note the mistake on the wiring diagrams in the cub section.

Something like this but obviously more professional looking. A computer person should be able to do this fairly easy I would think?




brewzalot said:
Glen, the information you provided is great- thanks. Stan is on the right track, I'm simply looking for a way to correct or note the mistake on the wiring diagrams in the cub section.

Something like this but obviously more professional looking. A computer person should be able to do this fairly easy I would think?



View attachment 70641
Click to expand...
A little photoshop application gets this: (cut and paste.)


Attachments

  • firing order - Copy.jpg
    firing order - Copy.jpg
    571.6 KB · Views: 18
Last edited:
