What oil in my H transmission?

Postby Jim in SC » Fri Jul 20, 2018 7:09 pm

I'm finally getting around to replacing the transmission fluid in my '51H, which I bought five months ago. I plan on draining the old, very black fluid out, then running 5-6 gallons of kerosene or diesel in it for 15 or 20 minutes before draining that off. Here's my question for the smart folks on the Forum:

What do y'all use in your transmissions? I'm thinking about using Warren® 90W mineral gear oil, API GL-1. What are your thoughts?

Thanks!

Jim
Circle of Safety
"That's the great thing about a tractor. You can't really hear the phone ring."
Jeff Foxworthy

1951 Farmall H
1959 Farmall Cub
1964 IH Cub Cadet 100
1971 IH Cub Cadet 106
2018 Husqvarna YTH18542

User avatar
John *.?-!.* cub owner
Team Cub Guide
Team Cub Guide
Posts: 23637
Joined: Sun Feb 02, 2003 2:09 pm
Zip Code: 63664
Tractors Owned: 47, 48, 49 cub plus Wagner loader & other attachments. 41 Farmall H.
Location: Mo, Potosi

Re: What oil in my H transmission?

Postby John *.?-!.* cub owner » Fri Jul 20, 2018 7:19 pm

90wt gear oil, I prefer one that is EP (extreme pressure) rated. An H that only get light use tends to condense water in the transmissions, even when stored inside. There will be about a quart of old gunky oil in the belt pulley housing if you have one. The only way to drain that is to remove the belt pulley housing and wash it out. it is splash lubricated from the transmission, but if you remove it and clean it out it needs to be refilled when it is reinstalled to have some lubrication at the beginning. I do not know about all of the H models, but my 41 has a drain plug at both the front and rear of the transmission, and both must be removed to get all the oil out.
If you are not part of the solution,
you are part of the problem!!!

User avatar
Urbish
5+ Years
5+ Years
Posts: 2264
Joined: Sat Sep 07, 2013 3:45 pm
Zip Code: 48158
Tractors Owned: ~
1958 International Cub LoBoy
1948 Farmall Cub
1977 International LoBoy 184
1947 Farmall H
1946 Farmall B
1953 Willys CJ3B

Cub-193 Moldboard Plow
Cub-54A Leveling and Grader Blade
Cub Loboy L-54 Leveling and Grader Blade
Unknown 5' Single Gang Disc Harrow
Circle of Safety: Y
Location: Manchester, MI

Re: What oil in my H transmission?

Postby Urbish » Sat Jul 21, 2018 5:23 am

I drained and refilled the transmission on my H for the first time last weekend. I was expecting around 6 gallons of gear oil, but instead I got 2-1/2 gallons of stuff that looked like butterscotch pudding. I hope I didn't burn anything up running it that low. I refilled with 6 gallons of 85W140.
Jim

Circle of Safety

User avatar
Jim in SC
5+ Years
5+ Years
Posts: 355
Joined: Mon Sep 15, 2014 10:16 am
Zip Code: 29527
Tractors Owned: 1951 Farmall H - "Ray R." (SN FBH 366519)
1959 Farmall Cub - "Pea" (SN 211538 J)
1964 IH Cub Cadet 100 - (SN 92562)
1971 IH Cub Cadet 106 - (SN 380760)

2018 Husqvarna YTH18542

Tractor previously owned:
1951 Farmall Cub - "Johnny R."
Circle of Safety: Y
Location: Conway, South Carolina

Re: What oil in my H transmission?

Postby Jim in SC » Sat Jul 21, 2018 7:41 am

Thank you John and Urbish, for the quick replies. Yes, John, I do have a belt pulley, so I'll do what you suggest. My H does get very light use, but if the condition of the transmission oil is like the condition of the engine oil, it needs changing for sure. Unless someone chimes in with a reason for me not to use the Warren 90 weight mineral oil, I'll be going with that. First things first, though. The H, along with my CC 106, gets a new "barn" this next week - a metal 20' x 20' building, but it will be my new barn. Once that's in place, I'll resume working on my tractors. I can't wait!
Circle of Safety
"That's the great thing about a tractor. You can't really hear the phone ring."
Jeff Foxworthy

1951 Farmall H
1959 Farmall Cub
1964 IH Cub Cadet 100
1971 IH Cub Cadet 106
2018 Husqvarna YTH18542

User avatar
Don McCombs
Team Cub Mentor
Team Cub Mentor
Posts: 15737
Joined: Mon Feb 03, 2003 6:45 am
Zip Code: 21550
Tractors Owned: "1950 Something" Farmall Cub
1957 Farmall Cub w/FH
1977 International Cub w/FH
1978 International Cub
1948 Farmall Super A
Circle of Safety: Y
Location: MD, Deep Creek Lake

Re: What oil in my H transmission?

Postby Don McCombs » Sat Jul 21, 2018 8:17 am

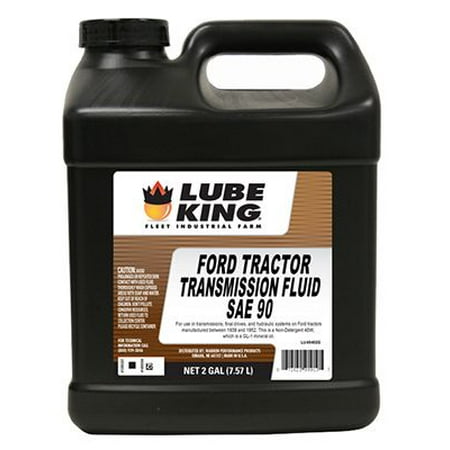

If this is the oil you're talking about, it should be fine.

Don McCombs
MD, Deep Creek Lake

Proud Member of Maryland Chapter 39
Circle of Safety

User avatar
Jim in SC
5+ Years
5+ Years
Posts: 355
Joined: Mon Sep 15, 2014 10:16 am
Zip Code: 29527
Tractors Owned: 1951 Farmall H - "Ray R." (SN FBH 366519)
1959 Farmall Cub - "Pea" (SN 211538 J)
1964 IH Cub Cadet 100 - (SN 92562)
1971 IH Cub Cadet 106 - (SN 380760)

2018 Husqvarna YTH18542

Tractor previously owned:
1951 Farmall Cub - "Johnny R."
Circle of Safety: Y
Location: Conway, South Carolina

Re: What oil in my H transmission?

Postby Jim in SC » Sun Jul 22, 2018 5:26 am

Hi Don, thanks! Looks good, other than the word "Ford"! Yeah, I think that is what I'll use, although I found the same oil, branded slightly different at Agri Supply (a local farm supply house, way better than Tractor Supply). Here's their link: https://www.agrisupply.com/90w-gear-oil/p/16324/

As far as I can tell, it's the same product, just in a different container - 12 bucks cheaper for 6 gallons though. :)

Again, thanks to all for the input!

Jim
Circle of Safety
"That's the great thing about a tractor. You can't really hear the phone ring."
Jeff Foxworthy

1951 Farmall H
1959 Farmall Cub
1964 IH Cub Cadet 100
1971 IH Cub Cadet 106
2018 Husqvarna YTH18542
