Bell Crank Extension

Postby Nelson 634 » Fri Jan 22, 2021 6:00 pm

I'm looking to make a Bell Crank Extension for one of my tractors. I have a question about the thickness of part of it. The tab that is welded to the longer piece is 3/8" thick. However I need to verify that the 16" (14" after bending") piece is a 1/2" thick. Seems a bit thick to lift a 150# blade. (Or as I'm typing this I'm thinking it's for downward pressure in the grader position.) Second question, what is the out side dimension of the stand off. Drawing has I.D. of 5/8" but no O.D. . I may have to find a shop to bend steel. They'll want dimensions of every thing. Sketch attached. Thank you to John Puckett for sketch.
Attachments
bell crank extension.jpg
Walter
Top
User avatar
Lt.Mike
10+ Years
10+ Years
Posts: 2438
Joined: Sun Feb 17, 2008 2:38 am
Zip Code: 07727
Tractors Owned: 1 -'58 International Cub Lo-Boy
2 - '46 International A's
2 - '52 Farmall Cubs
1 - '53 Farmall Super A
1 - ‘41 Ford 9N with a ‘49 8N Engine
1 - ‘48 (5641) Allis Chalmers G
Location: Farmingdale NJ

Re: Bell Crank Extension

Postby Lt.Mike » Fri Jan 22, 2021 6:27 pm

I have two of these I’ll go out tomorrow and take measurements
Quote by Gary Pickeral I like
"If it can cast a shadow, it can be restored"
Top
Nelson 634
5+ Years
5+ Years
Posts: 307
Joined: Thu May 24, 2018 9:57 pm
Zip Code: 22958
Tractors Owned: 5 Cubs
1952 100
1960 460 Utility
Location: Central Va.

Re: Bell Crank Extension

Postby Nelson 634 » Fri Jan 22, 2021 6:43 pm

Thanks!
Walter
Top
User avatar
Don McCombs
Team Cub Mentor
Team Cub Mentor
Posts: 16960
Joined: Mon Feb 03, 2003 6:45 am
Zip Code: 21550
Tractors Owned: "1950 Something" Farmall Cub
1957 Farmall Cub w/FH
1977 International Cub w/FH
1978 International Cub
1948 Farmall Super A
Circle of Safety: Y
Location: MD, Deep Creek Lake

Re: Bell Crank Extension

Postby Don McCombs » Fri Jan 22, 2021 7:13 pm

The "boomerang" style extension is 1/2" stock, so I would think this one would be also. Since it is only a spacer, the exact OD of the standoff is not super critical.

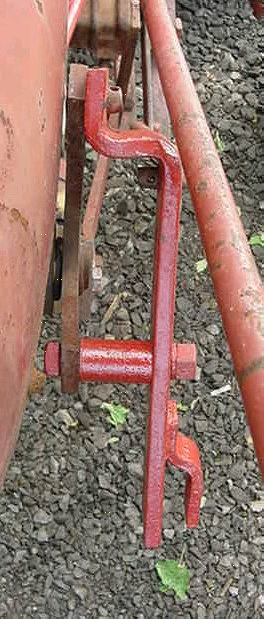

Photo courtesy TM Tractor Parts
Don McCombs
MD, Deep Creek Lake

Proud Member of Maryland Chapter 39

The best teachers are those who show you where to look, but don't tell you what to see.
A. K. Trenfor
Top
User avatar
Bill V in Md
10+ Years
10+ Years
Posts: 1053
Joined: Sun Feb 02, 2003 6:51 pm
Zip Code: 21228
Tractors Owned: 1948 Farmall Cub
LT1045 Cub Cadet
Circle of Safety: Y
Location: MD, Catonsville

Re: Bell Crank Extension

Postby Bill V in Md » Fri Jan 22, 2021 7:52 pm

From measurement, main bar is 1/2” thick. Spacer OD is 1 1/4”. Not certain, but I think spacer is probably 1 1/4” mechanical tubing x 5/16” wall.
Bill VanHooser
Circle of Safety
Top
