Steering shaft ID
I think that the shafts for the 24 tooth gear were about 3" longer, but am not positive. Is there any other way to ID the difference if you don't have the gear to mate it to?
"We don't need to think more,
we need to think differently."
-Albert Einstein
we need to think differently."
-Albert Einstein
-
- 5+ Years
- Posts: 105
- Joined: Thu Jun 22, 2017 5:55 pm
- Zip Code: 41094
Re: Steering shaft ID
I believe you're correct on the length, Cubfriend will be along later with more details.
-
- Team Cub
- Posts: 17278
- Joined: Sun Feb 02, 2003 2:59 pm
- Zip Code: 55319
- Circle of Safety: Y
- Location: MN
Re: Steering shaft ID
Yes. The difference can be readily seen at the steering wheel. The early wheel is very close to the shaft support. The later one is several inches away.
-
- 10+ Years
- Posts: 6151
- Joined: Mon Mar 19, 2012 7:33 pm
- Zip Code: 00000
- Tractors Owned: 1956 Farmall Cub with Fast Hitch, F-11 plow, Disc, Cultivator, Cub-22 mower
- Circle of Safety: Y
- Location: Wa.
Re: Steering shaft ID
Hi,
I don't have one of each to measure, but here are pics from Cub operator's manuals.
You can see the length in the pics.
You could measure the length above where the shaft has been wearing in the upper holder.
Below is the front of the 1965 manual.
http://farmallcub.com/rudi_cub/www.clea ... ge-001.jpg
Below is a page from the 1955 manual.
http://farmallcub.com/rudi_cub/www.clea ... e%2003.jpg
I don't have one of each to measure, but here are pics from Cub operator's manuals.
You can see the length in the pics.
You could measure the length above where the shaft has been wearing in the upper holder.
Below is the front of the 1965 manual.
http://farmallcub.com/rudi_cub/www.clea ... ge-001.jpg
Below is a page from the 1955 manual.
http://farmallcub.com/rudi_cub/www.clea ... e%2003.jpg
-
- 5+ Years
- Posts: 2822
- Joined: Wed Jul 08, 2015 10:24 am
- Zip Code: 19342
- Tractors Owned: 1948 6v - Dozer
1949 with kub klipper belly mower. mag 6v - Mom
1950 with plow, 54 blade, mott mag 6v - Roxanne
1953 54 blade, c22, wood 42 6v
1957 6v - barn Queen
1965 lo-boy with c-3 mower 12 v - Loboy
1974 Horse II 12 v c-2
1975 with woods 42-6 12 v - Horse
1979 long strip 12 v stuck engine
130 with international 1000 loader 6 v
1969 140 with bush hog tow behind mower 12 v
Terramite T-6 4WD Backhoe Perkins diesel
Memberships: Rough and Tumble Engineers Historical Association;Chapter 8 IH Collectors; IH Collectors Worldwide - Circle of Safety: Y
- Location: Glen Mills PA
Re: Steering shaft ID
I have a few ends I have cut off to shorten
the difference in length is ~ 3.5" - what is shown plus a 1/16 for the band saw cut
the difference in length is ~ 3.5" - what is shown plus a 1/16 for the band saw cut
When you only have 9 horsepower you need to know the names of all of the ponies!
-
- Team Cub
- Posts: 17278
- Joined: Sun Feb 02, 2003 2:59 pm
- Zip Code: 55319
- Circle of Safety: Y
- Location: MN
Re: Steering shaft ID
inairam wrote:I have a few ends I have cut off to shorten . . .
I had thought about mentioning the risk of measuring the length to tell them apart. . . .
You can probably tell them apart by looking at the gear, difference in thread pitch or the like. I'm not ready to take two tractors apart just to see the difference.
-
- Team Cub Mentor
- Posts: 5641
- Joined: Thu Aug 03, 2006 6:20 am
- Zip Code: 43358
- Tractors Owned: 48 Cub Diesel (Cubota)
53 Cockshutt 20 restored (Shooter)
52 Cockshutt 20 unrestored
47 Leader "B" (Herckie)
49 Leader "D" (Princess)
49 Leader "D" very rough
48 Leader "D" unrestored
Kubota B6200E
Kubota B6200HST
Kubota B8200HST-D - Circle of Safety: Y
- Location: OH West Mansfield
Re: Steering shaft ID
If you had a pic. of the two gears side by side, the difference very easy to see. There is a pretty significant difference in the pitch of the worm gear.
-
- Team Cub Mentor
- Posts: 17488
- Joined: Mon Feb 03, 2003 6:45 am
- Zip Code: 21550
- Tractors Owned: "1950 Something" Farmall Cub
1957 Farmall Cub w/FH
1977 International Cub w/FH
1978 International Cub
1948 Farmall Super A - Circle of Safety: Y
- Location: MD, Deep Creek Lake
Re: Steering shaft ID
There is a photo of each on the TM Tractor website.
-
- Team Cub Mentor
- Posts: 5641
- Joined: Thu Aug 03, 2006 6:20 am
- Zip Code: 43358
- Tractors Owned: 48 Cub Diesel (Cubota)
53 Cockshutt 20 restored (Shooter)
52 Cockshutt 20 unrestored
47 Leader "B" (Herckie)
49 Leader "D" (Princess)
49 Leader "D" very rough
48 Leader "D" unrestored
Kubota B6200E
Kubota B6200HST
Kubota B8200HST-D - Circle of Safety: Y
- Location: OH West Mansfield
Re: Steering shaft ID
OK Don, I looked at them, not as different as I was thinking, a little different, though.
-
- Team Cub
- Posts: 17278
- Joined: Sun Feb 02, 2003 2:59 pm
- Zip Code: 55319
- Circle of Safety: Y
- Location: MN
Re: Steering shaft ID
Don McCombs wrote:There is a photo of each on the TM Tractor website.
I should have thought to look there. There isn't a lot of difference in the appearance, but enough for identification if you have both pictures. The lengths of both are given along with the pictures, which pretty well answers the original question.
-
- Team Cub
- Posts: 11861
- Joined: Tue May 25, 2004 8:02 pm
- Zip Code: 80501
- Tractors Owned: Cubs, MH Pony, Shaw, Allis G, 1934 Silver King, JD LA and LI, Gibson D, David Bradley Tri-Trac
- Circle of Safety: Y
- Location: CO, Longmont
Re: Steering shaft ID
I forgot to look at TM's site too. Thanks for the info.
"We don't need to think more,
we need to think differently."
-Albert Einstein
we need to think differently."
-Albert Einstein
-
- Team Cub
- Posts: 17278
- Joined: Sun Feb 02, 2003 2:59 pm
- Zip Code: 55319
- Circle of Safety: Y
- Location: MN
Re: Steering shaft ID

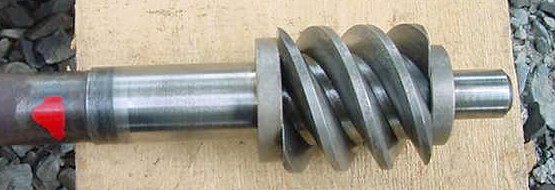

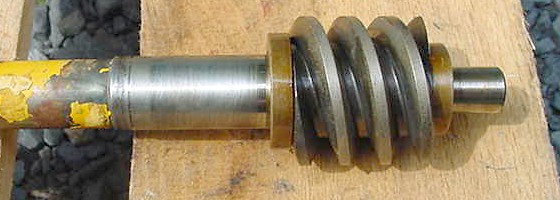

Here they are, straight from TM.
Early, 64-7/8 long.
Late, 68-1/8 long.
Another indicator, if you are looking at a used shaft, wear from the support bearing should be visible closer/farther from the threaded end.
Early, 64-7/8 long.
Late, 68-1/8 long.
Another indicator, if you are looking at a used shaft, wear from the support bearing should be visible closer/farther from the threaded end.
-
- Team Cub
- Posts: 9526
- Joined: Wed Jul 26, 2006 10:50 am
- Zip Code: 44057
- Tractors Owned: 57 F-Cub - Dad & Mom's Cub
77 F-Cub - Red Long Stripe - Circle of Safety: Y
- Location: OH, Madison
Re: Steering shaft ID
I've got later one that will be going to the machine shop this winter to be shortened.
Bill
Bill
-
- 5+ Years
- Posts: 2822
- Joined: Wed Jul 08, 2015 10:24 am
- Zip Code: 19342
- Tractors Owned: 1948 6v - Dozer
1949 with kub klipper belly mower. mag 6v - Mom
1950 with plow, 54 blade, mott mag 6v - Roxanne
1953 54 blade, c22, wood 42 6v
1957 6v - barn Queen
1965 lo-boy with c-3 mower 12 v - Loboy
1974 Horse II 12 v c-2
1975 with woods 42-6 12 v - Horse
1979 long strip 12 v stuck engine
130 with international 1000 loader 6 v
1969 140 with bush hog tow behind mower 12 v
Terramite T-6 4WD Backhoe Perkins diesel
Memberships: Rough and Tumble Engineers Historical Association;Chapter 8 IH Collectors; IH Collectors Worldwide - Circle of Safety: Y
- Location: Glen Mills PA
Re: Steering shaft ID
Jim as usual is ahead of me.
I got an installed length of just over 60" for the short or early shafts and an overall length of 64 5/8th for the short but is was on I cut. So Jim is probably correct on the over all.
I got an installed length of just over 60" for the short or early shafts and an overall length of 64 5/8th for the short but is was on I cut. So Jim is probably correct on the over all.
When you only have 9 horsepower you need to know the names of all of the ponies!
-
