'55 Cub "Refurbishing"
Forum rules
Notice: For sale and wanted posts are not allowed in this forum. Please use our free classifieds or one of our site sponsors for your tractor and parts needs.
Notice: For sale and wanted posts are not allowed in this forum. Please use our free classifieds or one of our site sponsors for your tractor and parts needs.
-
- 10+ Years
- Posts: 1181
- Joined: Sat Jan 28, 2012 3:13 pm
- Zip Code: 68803
- Tractors Owned: 1948 Cub, Kittie; 1948 Cub, Harold; 1949 Cub, 49er; 1951 Cub, Tucker; 1951 Cub, Homely; 1956 Cub High Crop; 1957 Cub Loboy; 57 Cub Loboy w/fasthitch + 194 plow; 1958 Cub LoBoy w/FH, Popeye; 1961 Cub, Beater; #1-1962 Cub Loboy Dually (Originally Orange) w/Foot Throttle; #2-1962 Cub Loboy Dually (Originally Orange) w/Foot throttle; Yellow 1963 Cub Loboy and blade; 1970 Cub, Cubbie; and 5 other Cubs in various stages of disaasembly and disrepair; 1962 Cub Cadet Original; 2 other Cub Cadet Originals; Cub Cadet 100; Cub Cadet 124 w/Creeper; Cub Cadet 147; 2 Cub Cadet 129's; Cub Cadet 149; 1948 Allis Chalmers C w/single frontwheel; 1944 Farmall H w/Tokhiem Cab; 2 One Point Fasthitch Carriers; 2-#100 Fasthitch Rear Blade; 2 Sets Cub 144 Cultivators; 2 Sets Cub #252 Cultivators; 3 Cub #193 Mouldboard Plows; 1 Cub #193 Slatted Plow; 1 1948 Cub-54 Snow Plow; 3 Cub-54 49-5 Snow Plows; Cub #6 Tool Bar w/Disc Blades & Middlebuster. 2-#105 sickle mowers, #152 disc plow
- Circle of Safety: Y
- Location: Grand Island, Nebraska
Re: '55 Cub "Refurbishing"
I wonder if soaking the leather seal in motor oil will cause it to swell some and create more friction when installed. I wonder if grease alone would be better. Anyone have any constructive comments on this matter.
Frank
-
- Team Cub Mentor
- Posts: 5657
- Joined: Thu Aug 03, 2006 6:20 am
- Zip Code: 43358
- Tractors Owned: 48 Cub Diesel (Cubota)
53 Cockshutt 20 restored (Shooter)
52 Cockshutt 20 unrestored
47 Leader "B" (Herckie)
49 Leader "D" (Princess)
49 Leader "D" very rough
48 Leader "D" unrestored
Kubota B6200E
Kubota B6200HST
Kubota B8200HST-D - Circle of Safety: Y
- Location: OH West Mansfield
Re: '55 Cub "Refurbishing"
Pre-soaking with oil won't hurt a thing, it's always a good idea on leather seals. You don't really need to soak the felt, per se but pre-oil it.
-
- 10+ Years
- Posts: 6711
- Joined: Tue Apr 27, 2010 11:34 am
- Zip Code: 27517
- Tractors Owned: '51 Cub #140966 "Bruno" with Woods 59 mower
'55 Cub #187541 "Betty" with Fast Hitch
'55 Cub #190482 "Ben" with Woods 42 mower
'55 Cub #191739 "Bertha" with Woods 42 mower
'56 Cub #194370 "Boris" with Mott Flail mower - Circle of Safety: Y
- Location: NC, Chapel Hill
Re: '55 Cub "Refurbishing"
So, do you guys think engine oil is the "lubricant" the manual calls for?
Surely SOMEONE has resolved this issue before me...
I plan to double check the orientation of the oil seals I removed, but the more I check earlier posts, the less sure I am about which way the seal faces.
I usually have no problem with other seals...lip faces fluid. In the photo of the new seals next to the manual pages (previous post here), you can see a drawing I had JUST found and printed out. I thought this clarified it for me, but that drawing shows the "lip" facing away from the hub.
QUESTION: is the drawing correct?
Surely SOMEONE has resolved this issue before me...
I plan to double check the orientation of the oil seals I removed, but the more I check earlier posts, the less sure I am about which way the seal faces.
I usually have no problem with other seals...lip faces fluid. In the photo of the new seals next to the manual pages (previous post here), you can see a drawing I had JUST found and printed out. I thought this clarified it for me, but that drawing shows the "lip" facing away from the hub.
QUESTION: is the drawing correct?
-
- 10+ Years
- Posts: 6711
- Joined: Tue Apr 27, 2010 11:34 am
- Zip Code: 27517
- Tractors Owned: '51 Cub #140966 "Bruno" with Woods 59 mower
'55 Cub #187541 "Betty" with Fast Hitch
'55 Cub #190482 "Ben" with Woods 42 mower
'55 Cub #191739 "Bertha" with Woods 42 mower
'56 Cub #194370 "Boris" with Mott Flail mower - Circle of Safety: Y
- Location: NC, Chapel Hill
Re: '55 Cub "Refurbishing"
OK, so here is where I got the photo of that front seal setup:
http://www.farmallcub.com/phpBB2/viewtopic.php?t=22629
At one point, forum member "drspiff" (who posted the drawing) asked if the drawing was correct. No one answered, and I now think the drawing is INCORRECT.
Here is a photo of the new seal (from TM Tractors). Not the difference in circumference between the two metal sides. One is slightly larger than the other, in this case it is the open side of the seal.
Here are some photos of the oil seals I took out, after cleaning them with kerosene. You can see that the old seals had a wrap of "spring steel" strip, rather than an actual spring as the new ones have (the VERY worn "open" sides are facing to the right, as is the new seal). And note that the circumferences are reversed between the old ones...
The difference in the circumferences was confusing me too! But I am now ALMOST positive, that the open side of the seal faces INTO the hub.
ANY COMMENTS?!
http://www.farmallcub.com/phpBB2/viewtopic.php?t=22629
At one point, forum member "drspiff" (who posted the drawing) asked if the drawing was correct. No one answered, and I now think the drawing is INCORRECT.
Here is a photo of the new seal (from TM Tractors). Not the difference in circumference between the two metal sides. One is slightly larger than the other, in this case it is the open side of the seal.
Here are some photos of the oil seals I took out, after cleaning them with kerosene. You can see that the old seals had a wrap of "spring steel" strip, rather than an actual spring as the new ones have (the VERY worn "open" sides are facing to the right, as is the new seal). And note that the circumferences are reversed between the old ones...
The difference in the circumferences was confusing me too! But I am now ALMOST positive, that the open side of the seal faces INTO the hub.
ANY COMMENTS?!
-
- 5+ Years
- Posts: 408
- Joined: Sun Jul 08, 2018 9:02 pm
- Zip Code: 27606
- Tractors Owned: 1949 farmall cub(building from parts) 1950 farmall cub
1971 David Brown 880 selectamatic - Circle of Safety: Y
Re: '55 Cub "Refurbishing"
Coming from an old school mechanic I would agree that the open side of the seal faces into the hub. The purpose of the seal is to keep lube in the hub more so than dirt out. The hubs that I pulled apart recently had the open side in. I have pulled the hubs apart on some old vehicles that had leather seals and the open side faced in also
-
- 10+ Years
- Posts: 1776
- Joined: Thu Oct 26, 2006 7:17 pm
- Zip Code: 44657
- Circle of Safety: Y
- Location: Minerva,Ohio
Re: '55 Cub "Refurbishing"
Picture of the tc37f parts book showing the seal lip away from the hub. I assume they would want to keep dirt out.
Better pic
Last edited by john2189 on Sun Jan 17, 2021 3:46 pm, edited 1 time in total.
'49 Cub (Vince)
'41 allis B with Woods L59 mower
656 Wheel Horse with 42” sickle mower
C-165 Wheel Horse
Simplicity 20 HP Sunstar
Honda 48” walk behind mower
'41 allis B with Woods L59 mower
656 Wheel Horse with 42” sickle mower
C-165 Wheel Horse
Simplicity 20 HP Sunstar
Honda 48” walk behind mower
-
- 10+ Years
- Posts: 6711
- Joined: Tue Apr 27, 2010 11:34 am
- Zip Code: 27517
- Tractors Owned: '51 Cub #140966 "Bruno" with Woods 59 mower
'55 Cub #187541 "Betty" with Fast Hitch
'55 Cub #190482 "Ben" with Woods 42 mower
'55 Cub #191739 "Bertha" with Woods 42 mower
'56 Cub #194370 "Boris" with Mott Flail mower - Circle of Safety: Y
- Location: NC, Chapel Hill
Re: '55 Cub "Refurbishing"
I think it would be hard to tell from that Parts Manual image, since it is hand drawn.
-
- Team Cub
- Posts: 17314
- Joined: Sun Feb 02, 2003 2:59 pm
- Zip Code: 55319
- Circle of Safety: Y
- Location: MN
Re: '55 Cub "Refurbishing"
On lube for the felt washer, I always use motor oil unless there are specific instructions otherwise (SAE 30 because that is what is in my oil can). How much, I probably use more than Gary does. I like to have it fairly well saturated but it doesn't need to drip back out when you install it. I figure more oil means less opportunity for water to get in and it seems otherwise harmless.
I install oil seals with the lip in, again unless the specific instructions say otherwise. There are exceptions. The main exceptions I have seen are on track rollers of crawlers. There it is considered more important to keep water and dirt out than to keep all the oil in. The shop manual for the Cub says to put the lip out, towards the felt. So that is what I do. I suppose it is for the same reason as the crawler rollers. Yes, I have had Cubs in water up to the front hubs.
I install oil seals with the lip in, again unless the specific instructions say otherwise. There are exceptions. The main exceptions I have seen are on track rollers of crawlers. There it is considered more important to keep water and dirt out than to keep all the oil in. The shop manual for the Cub says to put the lip out, towards the felt. So that is what I do. I suppose it is for the same reason as the crawler rollers. Yes, I have had Cubs in water up to the front hubs.
-
- 10+ Years
- Posts: 1776
- Joined: Thu Oct 26, 2006 7:17 pm
- Zip Code: 44657
- Circle of Safety: Y
- Location: Minerva,Ohio
Re: '55 Cub "Refurbishing"
Dale Finch wrote:I think it would be hard to tell from that Parts Manual image, since it is hand drawn.
They have drawn things by hand long before computers
When ever I question how something goes back together, I look at the parts manual
'49 Cub (Vince)
'41 allis B with Woods L59 mower
656 Wheel Horse with 42” sickle mower
C-165 Wheel Horse
Simplicity 20 HP Sunstar
Honda 48” walk behind mower
'41 allis B with Woods L59 mower
656 Wheel Horse with 42” sickle mower
C-165 Wheel Horse
Simplicity 20 HP Sunstar
Honda 48” walk behind mower
-
- 10+ Years
- Posts: 6711
- Joined: Tue Apr 27, 2010 11:34 am
- Zip Code: 27517
- Tractors Owned: '51 Cub #140966 "Bruno" with Woods 59 mower
'55 Cub #187541 "Betty" with Fast Hitch
'55 Cub #190482 "Ben" with Woods 42 mower
'55 Cub #191739 "Bertha" with Woods 42 mower
'56 Cub #194370 "Boris" with Mott Flail mower - Circle of Safety: Y
- Location: NC, Chapel Hill
Re: '55 Cub "Refurbishing"
Jim Becker wrote:.....The shop manual for the Cub says to put the lip out, towards the felt. So that is what I do.....
SHHESH! I just reread that section, and I DO remember reading that before. It is quite specific.
I guess I just dismissed it, or forgot it, and the "normal" installation would have a seal with the open side to the fluid, in this case I thought that would be the grease from the bearing. But you are right, it would be more useful to keep water (and dirt) out. And that means BOTH these seals had been put in backwards. Oh my...what a brain struggle for two stupid seals!!!
If there are no statements, then to the contrary, I WILL install those seals AS SHOWN in that CAD drawing above.
Sorry to have seemed so dense!
-
- Team Cub Mentor
- Posts: 17533
- Joined: Mon Feb 03, 2003 6:45 am
- Zip Code: 21550
- Tractors Owned: "1950 Something" Farmall Cub
1957 Farmall Cub w/FH
1977 International Cub w/FH
1978 International Cub
1948 Farmall Super A - Circle of Safety: Y
- Location: MD, Deep Creek Lake
Re: '55 Cub "Refurbishing"

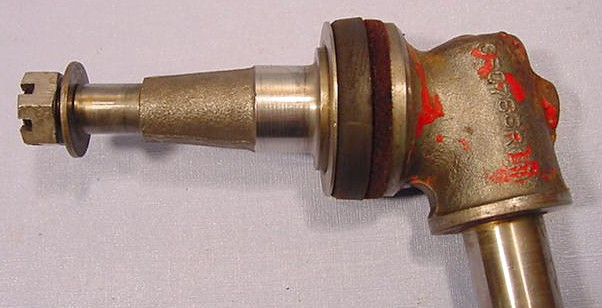

This photo from TM Tractor Parts also seems to confirm the correct orientation.
-
- 5+ Years
- Posts: 408
- Joined: Sun Jul 08, 2018 9:02 pm
- Zip Code: 27606
- Tractors Owned: 1949 farmall cub(building from parts) 1950 farmall cub
1971 David Brown 880 selectamatic - Circle of Safety: Y
Re: '55 Cub "Refurbishing"
I stand corrected and learned something new about rebuilding cubs. I’m fixing to put new bearings and seals in a couple of hubs on the cub I’m currently working on and now I know they will be correctly oriented. Thanks Dale for pushing to find the correct answer to your question on this matter
-
- 10+ Years
- Posts: 6711
- Joined: Tue Apr 27, 2010 11:34 am
- Zip Code: 27517
- Tractors Owned: '51 Cub #140966 "Bruno" with Woods 59 mower
'55 Cub #187541 "Betty" with Fast Hitch
'55 Cub #190482 "Ben" with Woods 42 mower
'55 Cub #191739 "Bertha" with Woods 42 mower
'56 Cub #194370 "Boris" with Mott Flail mower - Circle of Safety: Y
- Location: NC, Chapel Hill
Re: '55 Cub "Refurbishing"
Don, PERFECT!!! Thanks to everyone who persevered through this "search for the truth"!
I AM glad I persisted...just wish I had figured it out before now. Guess it was a good thing my parts had not yet arrived, or they might (probably) would have been installed incorrectly!! I'll have to thank Ron at TM Tractors for saving my tush...and wallet...when they had to be pulled back off!!
I AM glad I persisted...just wish I had figured it out before now. Guess it was a good thing my parts had not yet arrived, or they might (probably) would have been installed incorrectly!! I'll have to thank Ron at TM Tractors for saving my tush...and wallet...when they had to be pulled back off!!
-
- 10+ Years
- Posts: 6179
- Joined: Mon Mar 19, 2012 7:33 pm
- Zip Code: 00000
- Tractors Owned: 1956 Farmall Cub with Fast Hitch, F-11 plow, Disc, Cultivator, Cub-22 mower
- Circle of Safety: Y
- Location: Wa.
Re: '55 Cub "Refurbishing"
Dale, the pic you posted above, from the other post, that says inside and outside on it, the inside and outside look backwards.
The area on the right in the pic is the spindle that goes inside the hub, and the area at the left of the pic, to the left of the felt, is outside the hub.
The area on the right in the pic is the spindle that goes inside the hub, and the area at the left of the pic, to the left of the felt, is outside the hub.
-
- 10+ Years
- Posts: 6711
- Joined: Tue Apr 27, 2010 11:34 am
- Zip Code: 27517
- Tractors Owned: '51 Cub #140966 "Bruno" with Woods 59 mower
'55 Cub #187541 "Betty" with Fast Hitch
'55 Cub #190482 "Ben" with Woods 42 mower
'55 Cub #191739 "Bertha" with Woods 42 mower
'56 Cub #194370 "Boris" with Mott Flail mower - Circle of Safety: Y
- Location: NC, Chapel Hill
Re: '55 Cub "Refurbishing"
This is where terminology can be confusing...the above CAD drawing is using Inside to mean toward the inside of the tractor....not the hub. Several previous posts used inside to mean inside the hub.
-
