Wanted: Landside for Cub Plow

[Matt Kirsch]

I have a real nice Cub plow but it's missing the landside. It's the "classic" style plow with the blacksmith share, what you think of when you think of a Farmall Cub plow.

Would anyone happen to have a good landside or a part number for what I should be searching for?

Someone rebuilt the share with a new point, and I suspect the moldboard is new, and the coulter might be new too.



[Peter Person]

Matt,
193 or 194(Fast Hitch)?

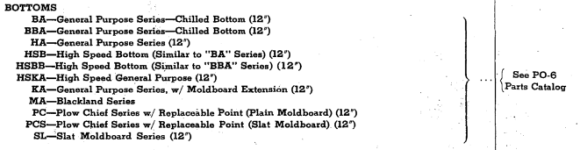

Parts Catalog PO-6 has all the Bottoms available from IH for all models of plows. Somewhat confusing.
PO-6 Bottoms - Lister Middlebuster Moldboard 11 1-54 OCR



[Matt Kirsch]

Matt,
193 or 194(Fast Hitch)?
Parts Catalog PO-6 has all the Bottoms available from IH for all models of plows. Somewhat confusing.
PO-6 Bottoms - Lister Middlebuster Moldboard 11 1-54 OCR

It's a 193.



[Don McCombs]

Photo?



[Peter Person]

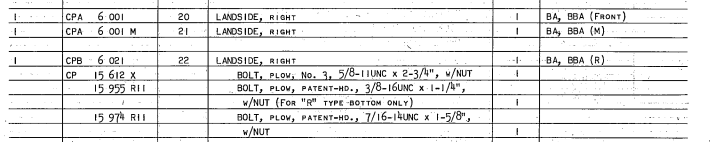

From the CBI-1A Parts Catalog for the 193 Plow, Rev 16 2-62:


From the Cub-193 Moldboard Plow 11-20-51 Owners Manual:



[Jim Becker]

Photo would help. But what would really help is all the part numbers you can find on the share, moldboard, etc. Plow model doesn't matter. It can have any style bottom. Each style bottom can have several different landsides. Once you figure out the part number of the landside you need, you can check google for a hit. You can also check Parts Depot and Ploworx.



[Matt Kirsch]



[Matt Kirsch]

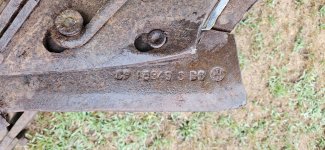

This is what I have:


This is what I need:


Looks like Duffield Equipment has a CP6001M used for $20. I'll give 'em a call tomorrow.



[Jim Becker]

It probably used the long (rear) landside, CP6021.



[Barnyard]

I think I have one but I would have to look for it.



[Matt Kirsch]

It probably used the long (rear) landside, CP6021.

Most likely, but they're out of those, and beggars can't be choosers.
