Snowplow mounting

Postby 55loboy » Sun Dec 05, 2021 8:02 am

I am in the process of mounting the snowplow on my 55 lowboy. I did a topic search and was unable to find diagrams or photos of how the plow mounts up.The link to diagram from 2017 was no longer available. Im pretty confident that I have all the mounting parts.

User avatar
ricky racer
10+ Years
10+ Years
Posts: 5656
Joined: Wed Sep 12, 2007 8:40 pm
Zip Code: 49120
Circle of Safety: Y
Location: Niles / Buchanan, Michigan

Re: Snowplow mounting

Postby ricky racer » Sun Dec 05, 2021 8:44 am

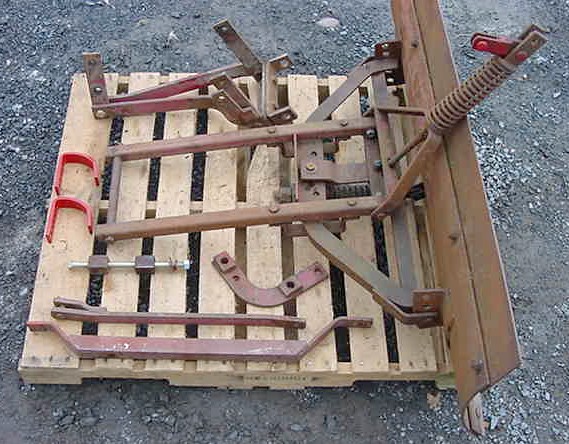

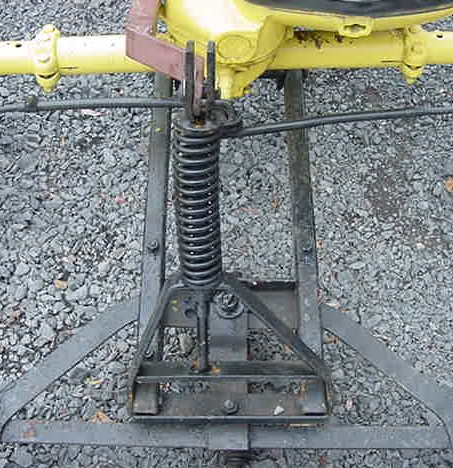

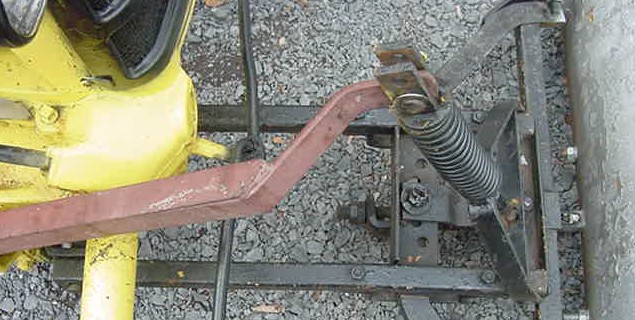

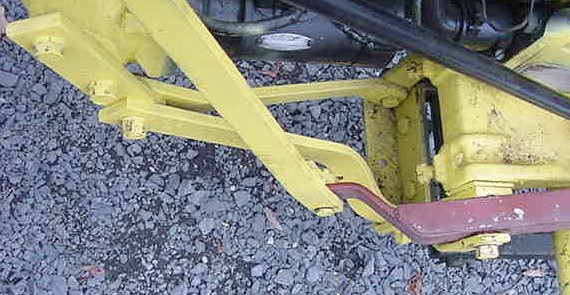

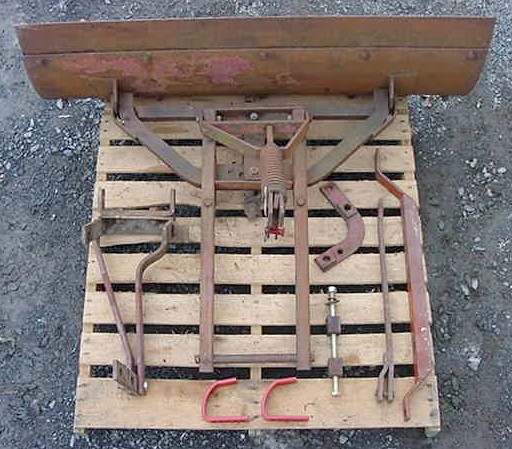

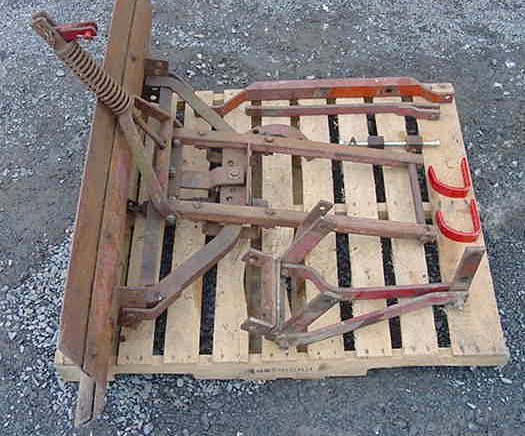

The pictures below are curtesy of TM Tractor Parts:








http://www.tmtractor.com/tm-tractor/gim/early_blade.htm

Hope this helps you.
1929 Farmall Regular
1935 John Deere B
1937 John Deere A
1941 John Deere H
1952 John Deere B
1953 Farmall Cub

User avatar
radioguy41
5+ Years
5+ Years
Posts: 969
Joined: Sun Jun 18, 2017 10:46 am
Zip Code: 18235
Tractors Owned: -
1948 Farmall Cub (Cyrus)
1980 Red IH Cub Cadet 782
1988 Cub Cadet 1806
1993 Craftsman LT4000
Cub-22 Sickle Mower
Planet Jr/Cole 300A Seeder
IH 59P Shredder
Circle of Safety: Y
Location: Lehighton, PA

Re: Snowplow mounting

Postby radioguy41 » Sun Dec 05, 2021 8:54 am

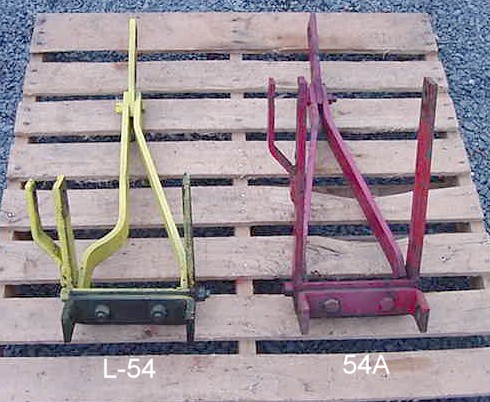

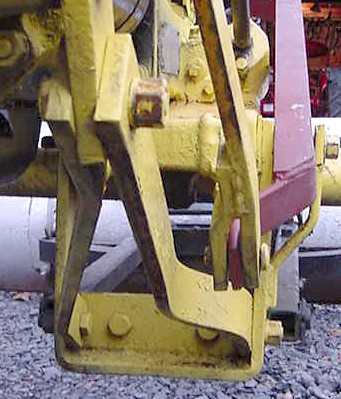

Make sure you have a Lo-Boy (L-54) mount and not a standard Cub (54A) mount. Click on the link to see all the differences.

http://www.tmtractor.com/tm-tractor/gim/bladelb1_001.htm

Circle of Safety Image ImageImage
KB3WBB

k hutchins
10+ Years
10+ Years
Posts: 630
Joined: Tue Mar 27, 2012 5:48 pm
Zip Code: 48843
Tractors Owned: 1948 Farmall Cub
193 plow
1948 snow/grading blade
Woods 59 C3
Cub 144 cultivator
Cub 22 mower
Cub 172 one row planter
Original manuals for all the above
Circle of Safety: Y

Re: Snowplow mounting

Postby k hutchins » Sun Dec 05, 2021 8:59 am

You didn't say what model blade you are mounting. I have the original book for my '48 grading/leveling blade. Let me know if you need info on that type. Otherwise, Ricky has probably got you covered with those pics.
Why is there never enough time to do the job right, but always enough time to do it over. :?:

55loboy
Posts: 4
Joined: Sun Nov 28, 2021 3:59 pm
Zip Code: 06615

Re: Snowplow mounting

Postby 55loboy » Sun Dec 05, 2021 10:45 pm

I’m not sure what model
plow I have.

User avatar
Don McCombs
Team Cub Mentor
Team Cub Mentor
Posts: 16241
Joined: Mon Feb 03, 2003 6:45 am
Zip Code: 21550
Tractors Owned: "1950 Something" Farmall Cub
1957 Farmall Cub w/FH
1977 International Cub w/FH
1978 International Cub
1948 Farmall Super A
Circle of Safety: Y
Location: MD, Deep Creek Lake

Re: Snowplow mounting

Postby Don McCombs » Sun Dec 05, 2021 10:46 pm

Post some photos.
Don McCombs
MD, Deep Creek Lake

Proud Member of Maryland Chapter 39
Circle of Safety

55loboy
Posts: 4
Joined: Sun Nov 28, 2021 3:59 pm
Zip Code: 06615

Re: Snowplow mounting

Postby 55loboy » Thu Dec 09, 2021 12:19 pm

I never can get photos posted but my parts look like the one in the photos.. I am missing the two blocks that mount inside the square tube below the engine. Any down and dirty alternatives? Or if someone has them for sale that work be the best alternative

indy61
10+ Years
10+ Years
Posts: 1291
Joined: Fri Jan 25, 2008 9:02 am
Zip Code: 00000
Circle of Safety: Y

Re: Snowplow mounting

Postby indy61 » Thu Dec 09, 2021 12:33 pm

TM Tractor Parts has them, they also have the bolt.

http://www.tmtractor.com/new/gb/393fp.htm

Here's a link to a manual.

http://farmallcub.com/rudi_cub/www.clea ... 0Blade.pdf

55loboy
Posts: 4
Joined: Sun Nov 28, 2021 3:59 pm
Zip Code: 06615

Re: Snowplow mounting

Postby 55loboy » Thu Dec 09, 2021 1:59 pm

Thanks. The blocks have been ordered. Next I need to count out how many bolts I need.

User avatar
Urbish
5+ Years
5+ Years
Posts: 2295
Joined: Sat Sep 07, 2013 3:45 pm
Zip Code: 48158
Tractors Owned: ~
1958 International Cub LoBoy
1948 Farmall Cub
1977 International LoBoy 184
1947 Farmall H
1946 Farmall B
1953 Willys CJ3B

Cub-193 Moldboard Plow
Cub-54A Leveling and Grader Blade
Cub Loboy L-54 Leveling and Grader Blade
Unknown 5' Single Gang Disc Harrow
Circle of Safety: Y
Location: Manchester, MI

Re: Snowplow mounting

Postby Urbish » Fri Dec 10, 2021 1:42 pm

You could fashion a couple of blocks from some solid oak if you are in a jam.
Jim

Circle of Safety

Nautiluscont
Posts: 21
Joined: Tue Nov 17, 2020 8:00 am
Zip Code: 43617
Tractors Owned: 48 Cub

Re: Snowplow mounting

Postby Nautiluscont » Fri Dec 10, 2021 9:23 pm

Urbish wrote:You could fashion a couple of blocks from some solid oak if you are in a jam.


I did this for a season... Worked fine.

tinnerjohn
10+ Years
10+ Years
Posts: 703
Joined: Sun Jan 20, 2008 5:52 pm
Zip Code: 44491
Tractors Owned: 52 Cub, 42 Farmall H 49 Ford 8N (FIL's tractor) and a yard full of implements for them 51 Chevy 3100 PU
Circle of Safety: Y
Location: West Farmington, OH

Re: Snowplow mounting

Postby tinnerjohn » Fri Dec 10, 2021 10:42 pm

k hutchins wrote:You didn't say what model blade you are mounting. I have the original book for my '48 grading/leveling blade. Let me know if you need info on that type. Otherwise, Ricky has probably got you covered with those pics.

Is yours a Cub 54 like the parts book extract in the manuals section? If it is what are the chabces of getting a photocopy of the manual?

John

User avatar
Urbish
5+ Years
5+ Years
Posts: 2295
Joined: Sat Sep 07, 2013 3:45 pm
Zip Code: 48158
Tractors Owned: ~
1958 International Cub LoBoy
1948 Farmall Cub
1977 International LoBoy 184
1947 Farmall H
1946 Farmall B
1953 Willys CJ3B

Cub-193 Moldboard Plow
Cub-54A Leveling and Grader Blade
Cub Loboy L-54 Leveling and Grader Blade
Unknown 5' Single Gang Disc Harrow
Circle of Safety: Y
Location: Manchester, MI

Re: Snowplow mounting

Postby Urbish » Mon Dec 13, 2021 2:24 pm

The '48 grader and leveling blade is an earlier version than the Cub-54 and was only offered for a year or so. If you look at the pics on TM Tractor's website, there are some distinguishable differences between the two. The Cub-54A came out later and has again some minor differences from the Cub-54. All mount to the tractor the same way, but the lift brackets and linkages differed.
Jim

Circle of Safety

User avatar
Dusty B
10+ Years
10+ Years
Posts: 1811
Joined: Wed May 23, 2007 7:35 am
Zip Code: 61736
Tractors Owned: '45 SC Case
Circle of Safety: Y
Location: IL, Downs

Re: Snowplow mounting

Postby Dusty B » Wed Dec 15, 2021 7:44 pm

Urbish wrote:You could fashion a couple of blocks from some solid oak if you are in a jam.

Cheapskate that I am - that is what I did!! No problem!!!
Grandpa's '41 B
'56,,'57,'59, Cu'b
'45 C
'55 Case S
Dad's DB garden tractor
'48 DeSoto
'31 "A Coup
'79 Lincoln TC
God looks out for those of us who don't know how to look out for ourselves!

Matt Kirsch
10+ Years
10+ Years
Posts: 4833
Joined: Tue Jun 08, 2004 3:04 pm
Zip Code: 14559
Circle of Safety: Y
Location: Rochester, NY

Re: Snowplow mounting

Postby Matt Kirsch » Thu Dec 16, 2021 10:04 am

It's the same basic procedure, Cub or Loboy.

Here's a video on the subject:
https://youtu.be/0Z5WpFjPc9w

Oh yeah, and the handsome gentleman is installing a LoBoy blade on a regular Cub here.
