Cub Fast Hitch

Postby Dell » Sun Apr 18, 2021 12:09 pm

Does the fast hitch FL194 plow beam - 520260R21 - come from the factory with a slight bend and twist or is it supposed to be straight. I have one that is straight, I think it has been straightened which may affect performance. Haven't tried it yet.

User avatar
tmays
10+ Years
10+ Years
Posts: 3042
Joined: Wed May 11, 2011 8:59 pm
Zip Code: 39154
Tractors Owned: 1948 Allis Chalmers G
1947 Cub
1952 Cub
1940 Farmall H
154 Cub LoBoy
Location: Vicksburg, MS

Re: Cub Fast Hitch

Postby tmays » Sun Apr 18, 2021 12:15 pm

Should have slight bend. The beam should have ‘cub’ on it for a cub plow
Thomas

SamsFarm
501 Club
501 Club
Posts: 769
Joined: Wed Jan 20, 2021 8:21 pm
Zip Code: 44410
Tractors Owned: 1968 Cub Fast Hitch
LF-1 Platform Carrier
144 Cultivators
L-F194 Plow(s)
F38 Disk
L-F3 Spring Tooth Harrow
Fast Hitch CS Bell 60 Grain Mill
Home Made Fast Hitch Potato Plow
54A Blade

Couple 1948 Cubs
172 Runner Planter
53 Fertilizer
Cub-3 Field Cultivator
Cub-189 Two Way Plow
Cub-22 Sickle Bar Mower
Mechanical Transplanter with side mount barrel (needs a fast hitch adapter) :)

Misc Belly Mowers

Wish List
International 100 Fast Hitch Blade
Mott Fast Hitch Flail Mower

Wish Wish Wish List
Fast Hitch Rotary Hoe
4E hammer mill
Location: Ne Ohio

Re: Cub Fast Hitch

Postby SamsFarm » Sun Apr 18, 2021 12:50 pm

Dell wrote:Does the fast hitch FL194 plow beam - 520260R21 - come from the factory with a slight bend and twist or is it supposed to be straight. I have one that is straight, I think it has been straightened which may affect performance. Haven't tried it yet.


Since you posted in the cub section, then I am asuming your using this with a cub tractor.

I have 3 fh 194 cub plows and each one has that slight twist / bend just past the vertical stabilizer.

The plow beam with only a part number and absent the letters CUB is for the fast hitch 100, 130, and 140!

1968 Cub fast hitch

Dell
10+ Years
10+ Years
Posts: 179
Joined: Thu Oct 22, 2009 8:35 am
Zip Code: 49057
Location: SW Michigan

Re: Cub Fast Hitch

Postby Dell » Sun Apr 18, 2021 3:08 pm

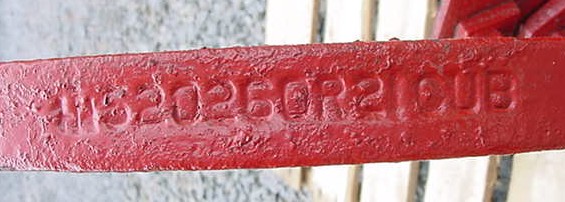

Mine does say cub after the number. Do the plows for the 100, 120 have the same twist or are they straight. Will mine work with my cub being straight. Why is the twist needed.
Whoever straightened this did a good job it is straight and true.
Attachments
Cub Plow.JPG

SamsFarm
501 Club
501 Club
Posts: 769
Joined: Wed Jan 20, 2021 8:21 pm
Zip Code: 44410
Tractors Owned: 1968 Cub Fast Hitch
LF-1 Platform Carrier
144 Cultivators
L-F194 Plow(s)
F38 Disk
L-F3 Spring Tooth Harrow
Fast Hitch CS Bell 60 Grain Mill
Home Made Fast Hitch Potato Plow
54A Blade

Couple 1948 Cubs
172 Runner Planter
53 Fertilizer
Cub-3 Field Cultivator
Cub-189 Two Way Plow
Cub-22 Sickle Bar Mower
Mechanical Transplanter with side mount barrel (needs a fast hitch adapter) :)

Misc Belly Mowers

Wish List
International 100 Fast Hitch Blade
Mott Fast Hitch Flail Mower

Wish Wish Wish List
Fast Hitch Rotary Hoe
4E hammer mill
Location: Ne Ohio

Re: Cub Fast Hitch

Postby SamsFarm » Sun Apr 18, 2021 4:07 pm

Hard to tell without trying it.

In your pic, it looks like there is a mark from where someone heated it up where the twist should be!

Could you post a top view pic?
1968 Cub fast hitch

Dell
10+ Years
10+ Years
Posts: 179
Joined: Thu Oct 22, 2009 8:35 am
Zip Code: 49057
Location: SW Michigan

Re: Cub Fast Hitch

Postby Dell » Sun Apr 18, 2021 5:07 pm

yes there is heat marks

The beam on the 140 is twisted just like the cub. It would be interesting to know the part number of the 140 beam.
I just watched a video called " Farmall 140 with one bottom plow". The guy did an excellent job of showing the draft of the plow from behind tractor. So I understand the need for the tilt of the beam but it seems to me IH could have saved themselves a lot of trouble by making the beam straight then use the plow mounting brackets to make the correct trail and draft.
I will have to wait until I get the fast hitch assembly mounted to the Cub before I will know if I wasted money buying this. Maybe it will work fine.

SamsFarm
501 Club
501 Club
Posts: 769
Joined: Wed Jan 20, 2021 8:21 pm
Zip Code: 44410
Tractors Owned: 1968 Cub Fast Hitch
LF-1 Platform Carrier
144 Cultivators
L-F194 Plow(s)
F38 Disk
L-F3 Spring Tooth Harrow
Fast Hitch CS Bell 60 Grain Mill
Home Made Fast Hitch Potato Plow
54A Blade

Couple 1948 Cubs
172 Runner Planter
53 Fertilizer
Cub-3 Field Cultivator
Cub-189 Two Way Plow
Cub-22 Sickle Bar Mower
Mechanical Transplanter with side mount barrel (needs a fast hitch adapter) :)

Misc Belly Mowers

Wish List
International 100 Fast Hitch Blade
Mott Fast Hitch Flail Mower

Wish Wish Wish List
Fast Hitch Rotary Hoe
4E hammer mill
Location: Ne Ohio

Re: Cub Fast Hitch

Postby SamsFarm » Sun Apr 18, 2021 5:18 pm

You could always reheat it and bend it back!

I know, easier said than done, right?

I could probably check one of mine and get you the degrees of difference if needed!

Pm me if so!
1968 Cub fast hitch

User avatar
Bill Hudson
Team Cub
Team Cub
Posts: 9006
Joined: Wed Jul 26, 2006 10:50 am
Zip Code: 44057
Tractors Owned: 57 F-Cub - Dad & Mom's Cub
77 F-Cub - Red Long Stripe
Circle of Safety: Y
Location: OH, Madison

Re: Cub Fast Hitch

Postby Bill Hudson » Sun Apr 18, 2021 5:32 pm

Dell wrote:Mine does say cub after the number. ...Will mine work with my cub being straight. Why is the twist needed.


Dell,

To answer your questions: No and the twist is to account for the Cub tilting right (furrow wheel) and the plow being perpendicular to the soil surface.

Take a look at this link, http://farmallcub.com/phpBB2/viewtopic.php?f=149&t=38411. Pay particular attention to the pics of the Cub setting on wooden blocks on the asphalt driveway. This was done to simulate how the tractor would be in a plowed field, without the soil being in the way. Incidentally there was a 194 plow there that someone convinced the owner the beam needed to be straightened. The plow owner was not a happy camper after learning about how the plow needed to be set up.

Bill
"The probability of life originating from accident is comparable to the probability of the unabridged dictionary resulting from an explosion in a printing shop." Edwin Conklin, biologist

Member of Ohio Chapter #6

Dell
10+ Years
10+ Years
Posts: 179
Joined: Thu Oct 22, 2009 8:35 am
Zip Code: 49057
Location: SW Michigan

Re: Cub Fast Hitch

Postby Dell » Sun Apr 18, 2021 6:52 pm

I was hoping to be able to use this plow with both the Cub and 300U. It won't go into the ground with the 300U because the tip angle is too high and rides on the trailing edge of the landside which raises the right drive tire. And it sounds like it is not going to work on the Cub. But I'll give it a try. Thanks for all the great information.
Dell

User avatar
Glen
5+ Years
5+ Years
Posts: 4910
Joined: Mon Mar 19, 2012 7:33 pm
Zip Code: 00000
Tractors Owned: 1956 Farmall Cub with Fast Hitch, F-11 plow, Disc, Cultivator, Cub-22 mower
Circle of Safety: Y
Location: Wa.

Re: Cub Fast Hitch

Postby Glen » Sun Apr 18, 2021 7:10 pm

Hi,
Don't overlook the last pic on the page in Bill's post above, the collar on the lift rod needs to be in the position shown, so the plow can float up and down.

It can bend the lift rod to push down on a plow with it.

The plowing depth is controlled by the depth lever, to the right of the seat. :)
