Trans part needed

Postby Ken (48 Cub) » Thu Apr 09, 2020 2:44 pm

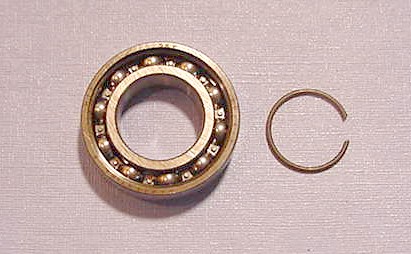

I need a new Trans input shaft bearing lock ring. Would a snap ring work? What size do I need?

All I need is the lock ring...I found the bearing for $17 here locally.


Thanks to TM Tractor for the image.
Ken, Annie the '48 Cub & Marie the '57 Loboy.

I think we gotter if'n she don't kick, Andy Griffith.

RonT
5+ Years
5+ Years
Posts: 261
Joined: Sat Apr 20, 2013 6:04 am
Zip Code: 34448
Tractors Owned: 1950 Cub - Whitington
1972 154 Cub Loboy
1989 Kubota L2050
1948 Willy's CJ-2A
1924 Model T Fordor
Location: FL, Homosassa

Re: Trans part needed

Postby RonT » Thu Apr 09, 2020 3:29 pm

A small snap ring is what most places supply with the shaft kits. I just got one today from Hamilton Bob for my 154 but the input bearing and that part of the shaft are the same as a standard cub.

Ron

User avatar
Don McCombs
Team Cub Mentor
Team Cub Mentor
Posts: 16252
Joined: Mon Feb 03, 2003 6:45 am
Zip Code: 21550
Tractors Owned: "1950 Something" Farmall Cub
1957 Farmall Cub w/FH
1977 International Cub w/FH
1978 International Cub
1948 Farmall Super A
Circle of Safety: Y
Location: MD, Deep Creek Lake

Re: Trans part needed

Postby Don McCombs » Thu Apr 09, 2020 3:38 pm

If Ron can come up with the dimensions, McMaster-Carr may have what you need.
Don McCombs
MD, Deep Creek Lake

Proud Member of Maryland Chapter 39
Circle of Safety

Bob McCarty
Team Cub
Team Cub
Posts: 11156
Joined: Tue May 25, 2004 8:02 pm
Zip Code: 80501
Tractors Owned: Cubs, MH Pony, Shaw, Allis G, 1934 Silver King, JD LA and LI, Gibson D, David Bradley Tri-Trac
Circle of Safety: Y
Location: CO, Longmont

Re: Trans part needed

Postby Bob McCarty » Thu Apr 09, 2020 4:19 pm

Don McCombs wrote:If Ron can come up with the dimensions, McMaster-Carr may have what you need.

I looked there and most come in packages of 25, 50, or 100. I would check an auto parts store once you have dimensions, or online.
"We don't need to think more,
we need to think differently."
-Albert Einstein

CharlieK
10+ Years
10+ Years
Posts: 580
Joined: Sun Apr 10, 2005 9:25 pm
Zip Code: 40165
Location: bullitt county, kentucky

Re: Trans part needed

Postby CharlieK » Thu Apr 09, 2020 5:18 pm

here in the VILLE you can go to bearings inc.
get er done; life is good

RonT
5+ Years
5+ Years
Posts: 261
Joined: Sat Apr 20, 2013 6:04 am
Zip Code: 34448
Tractors Owned: 1950 Cub - Whitington
1972 154 Cub Loboy
1989 Kubota L2050
1948 Willy's CJ-2A
1924 Model T Fordor
Location: FL, Homosassa

Re: Trans part needed

Postby RonT » Fri Apr 10, 2020 9:49 am

20200410_103605[1] (800x600).jpg
Cub transmission input shaft bearing retainer.


Ken
Here is a picture of the cub 154 shaft and snap ring supplied by Hamilton Bob (on the right). Along side is the SR-1 1" snap ring from the Harbor Freight assortment. Although parts of the OD are just a bit bigger, I tried it on the shaft and I would not be afraid to use it provided it clears the seal lip in the retainer.

I have 10 of these and would be happy to slip one in the mail to you if you can't source one locally but I think either HF or a good hardware store will have this.

Stay safe and well
Ron

User avatar
Dale Finch
10+ Years
10+ Years
Posts: 5997
Joined: Tue Apr 27, 2010 11:34 am
Zip Code: 27517
Tractors Owned: '51 Cub #140966 "Bruno" with Woods 59 mower
'55 Cub #187541 "Betty" with Fast Hitch
'55 Cub #190482 "Ben" with Woods 42 mower
'55 Cub #191739 "Bertha" with Woods 42 mower
'56 Cub #194370 "Boris" with Mott Flail mower
Circle of Safety: Y
Location: NC, Chapel Hill

Re: Trans part needed

Postby Dale Finch » Fri Apr 10, 2020 6:27 pm

I looked up the part number for the ring you need, which I believe it #351 539 R1
I happen to have a snap ring that is for the PTO bearing, #369 875 R1, that I don't need. Problem is, I have no dimensions for either, so I don't know if it would fit. If you find out this would work, you are welcome to it.

Dale Finch
Circle of Safety

User avatar
Barnyard
Team Cub
Team Cub
Posts: 23498
Joined: Tue Aug 07, 2007 3:39 pm
Zip Code: 45030
Tractors Owned: At This Time
40 Farmall Cubs (Round Hood)
2 Farmall Cub (Square Hood)
2 IH Cubs (Square Hood)
5 Lo-Boys (Round Hood)
2 Lo-Boys (Square Hood)
2 Farmall 404's
1 Farmall H
1 Ferguson 20
1 Cub Cadet 125
1 Kubota B-7100
Circle of Safety: Y
Location: OH, New Haven (Hamilton County)

Re: Trans part needed

Postby Barnyard » Fri Apr 10, 2020 6:32 pm

Dale Finch wrote: Problem is, I have no dimensions for either, so I don't know if it would fit.

If the part numbers are different then the odds are good it won't fit. If two parts are the same then the part numbers would be the same.
There are two ways to get enough Cubs. One is to continue to accumulate more and more. The other is to desire less.

Circle of Safety

indy61
10+ Years
10+ Years
Posts: 1291
Joined: Fri Jan 25, 2008 9:02 am
Zip Code: 00000
Circle of Safety: Y

Re: Trans part needed

Postby indy61 » Sat Apr 11, 2020 6:40 am

Here is a listing on Amazon for retaining rings from Hamiltonbobs. It states in the description "Replaces Part Numbers: 351539R1, 369875R1"
If that is accurate than Dale's should work.

https://www.amazon.com/Hamiltonbobs-Pre ... B00UCESI30

User avatar
Ken (48 Cub)
10+ Years
10+ Years
Posts: 971
Joined: Mon Feb 03, 2003 11:10 am
Zip Code: 40023
Tractors Owned: 1948 FCub
Circle of Safety: Y
Location: KY, Fisherville

Re: Trans part needed

Postby Ken (48 Cub) » Sun Apr 12, 2020 7:04 am

Thanks everyone...a 1" snap ring from Rural King worked just fine. ID measures approximately 13/16". That's as close as I can get. Tractor is back together and running.
Ken, Annie the '48 Cub & Marie the '57 Loboy.

I think we gotter if'n she don't kick, Andy Griffith.

RonT
5+ Years
5+ Years
Posts: 261
Joined: Sat Apr 20, 2013 6:04 am
Zip Code: 34448
Tractors Owned: 1950 Cub - Whitington
1972 154 Cub Loboy
1989 Kubota L2050
1948 Willy's CJ-2A
1924 Model T Fordor
Location: FL, Homosassa

Re: Trans part needed

Postby RonT » Sun Apr 12, 2020 7:48 am

Good deal! Glad you were able to get it done.
