1970 IH Cub Touch Control Hydraulics
Forum rules
Notice: For sale and wanted posts are not allowed in this forum. Please use our free classifieds or one of our site sponsors for your tractor and parts needs.
Notice: For sale and wanted posts are not allowed in this forum. Please use our free classifieds or one of our site sponsors for your tractor and parts needs.
-
- 5+ Years
- Posts: 2
- Joined: Wed Mar 06, 2019 12:46 pm
- Zip Code: 76247
1970 IH Cub Touch Control Hydraulics
Hello All, New Member Here. I Have a 1970 Cub and the touch control hydraulic unit has a casting hole on the top surface of reservoir near the fluid fill plug. There is a domed shaped plug that covers the hole in the casting. The plastic cap is broken. I've tried to locate the part number in several attempts with no luck. no manuals or diagrams show this plug & dealer has no record of there even being a hole & cap in the top of Reservoir. Ant information someone could provide would be appreciated. Thanks.
- Don McCombs
- Team Cub Mentor
- Posts: 17486
- Joined: Mon Feb 03, 2003 6:45 am
- Zip Code: 21550
- Tractors Owned: "1950 Something" Farmall Cub
1957 Farmall Cub w/FH
1977 International Cub w/FH
1978 International Cub
1948 Farmall Super A - Circle of Safety: Y
- Location: MD, Deep Creek Lake
Re: 1970 IH Cub Touch Control Hydraulics

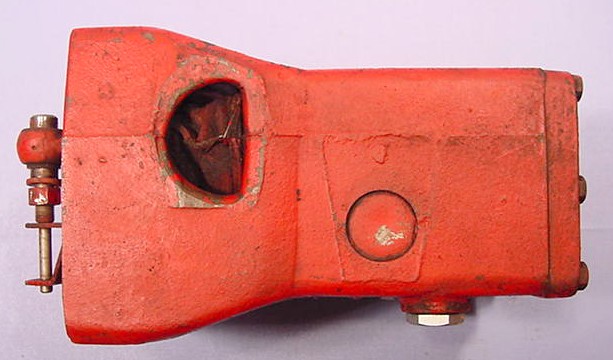

I assume that the round plug at the right-center of the following photo is what you are referring to. That is a Welch plug and should be available at most good auto parts stores or from TM Tractor Parts.
http://www.tmtractor.com/new/hy/515fp.htm
http://www.tmtractor.com/new/hy/515fp.htm
- Glen
- 10+ Years
- Posts: 6146
- Joined: Mon Mar 19, 2012 7:33 pm
- Zip Code: 00000
- Tractors Owned: 1956 Farmall Cub with Fast Hitch, F-11 plow, Disc, Cultivator, Cub-22 mower
- Circle of Safety: Y
- Location: Wa.
Re: 1970 IH Cub Touch Control Hydraulics
Hi,
The pic Don posted above is how they look. I don't know what plastic plug you are talking about.
The filler plug is metal.
The pic Don posted above is how they look. I don't know what plastic plug you are talking about.
The filler plug is metal.
-
- 10+ Years
- Posts: 110
- Joined: Fri Oct 31, 2008 5:23 pm
- Zip Code: 07826
- Tractors Owned: 1948 Ford 8N
1955 Lo Boy - Location: Sandyston, NJ
Re: 1970 IH Cub Touch Control Hydraulics
My 55 LoBoy had a hand carved wooden plug in that hole when I got it.
-
- 5+ Years
- Posts: 4
- Joined: Thu Mar 07, 2019 9:57 am
- Zip Code: 27358
Re: 1970 IH Cub Touch Control Hydraulics
The plug is 1" NPT with about 3/4" thread depth if that helps.
- Glen
- 10+ Years
- Posts: 6146
- Joined: Mon Mar 19, 2012 7:33 pm
- Zip Code: 00000
- Tractors Owned: 1956 Farmall Cub with Fast Hitch, F-11 plow, Disc, Cultivator, Cub-22 mower
- Circle of Safety: Y
- Location: Wa.
Re: 1970 IH Cub Touch Control Hydraulics
Hi,
The Cub parts manual says on the Touch Control with block number 360719R1, the filler plug is the same number as the oil pan drain plug, for engines serial number 123700 and above. They both use an IH part number 445096 plug, and a 3405H gasket for the plug. They are 7/8", 18 thread.
TM Tractor has the plug and gasket for the engine oil pan, it is the same part number the Touch Control uses.
http://www.tmtractor.com/new/en/406fp.htm
http://www.tmtractor.com/new/en/844fp.htm
Some of the Touch Controls before 360719R1 had different size filler plugs, with a square head. They were a 3/4", 14 thread, the Cub parts manual says.
The oil pans before engine serial number 123700 used a different size plug, with a square head.
The Cub parts manual says on the Touch Control with block number 360719R1, the filler plug is the same number as the oil pan drain plug, for engines serial number 123700 and above. They both use an IH part number 445096 plug, and a 3405H gasket for the plug. They are 7/8", 18 thread.
TM Tractor has the plug and gasket for the engine oil pan, it is the same part number the Touch Control uses.
http://www.tmtractor.com/new/en/406fp.htm
http://www.tmtractor.com/new/en/844fp.htm
Some of the Touch Controls before 360719R1 had different size filler plugs, with a square head. They were a 3/4", 14 thread, the Cub parts manual says.
The oil pans before engine serial number 123700 used a different size plug, with a square head.
-
- 5+ Years
- Posts: 2
- Joined: Wed Mar 06, 2019 12:46 pm
- Zip Code: 76247
Re: 1970 IH Cub Touch Control Hydraulics
Thanks guys, that worked great. Welch plug.
