A Starter Rod and other questions.

Postby CPIII » Tue Mar 25, 2014 1:50 pm

I am looking for a picture of how the starter rod is normally set up on a 1947 A. The one I recently purchased is missing the rod and the lever....i have tried searching the web but haven't been able to find any good pictures on what I am missing. I think i could fabricate what I need but not sure how it is supposed to be. Also mine doesn't have a gen\alternator and I can't really see where it is supposed to be mounted. If anyone have pics of a 12V alternator upgrade I would appreciate it.
Charles Patek III
Some days - Chicken.......Some days - Feathers
Words to live by....

User avatar
twotone
5+ Years
5+ Years
501 Club
501 Club
Posts: 1116
Joined: Sat May 14, 2011 6:09 pm
Zip Code: 15132
Tractors Owned: 53 F Cub
73 F Cub
53 Super A With Snow/Grader Blade
193 Plow With Colter And Jointer
144 Cultivators
22 Mower
Circle of Safety: Y
Location: Versailles,Pa.

Re: A Starter Rod and other questions.

Postby twotone » Tue Mar 25, 2014 2:55 pm

I don't know if a 53 is the same, but this is what mine looks like. I've seen alt conversions on these and it goes right where the gen is.
You do not have the required permissions to view the files attached to this post.
Know Your Cub, And Your Cub Will Know You.

Tom

User avatar
Don McCombs
Team Cub Mentor
Team Cub Mentor
501 Club
501 Club
Posts: 12114
Joined: Mon Feb 03, 2003 6:45 am
Zip Code: 21550
Tractors Owned: "1950 Something" Farmall Cub
1957 Farmall Cub w/FH
1977 International Cub w/FH
1978 International Cub
1948 Farmall Super A
1951 Farmall Super C w/FH
Circle of Safety: Y
Location: MD, Deep Creek Lake

Re: A Starter Rod and other questions.

Postby Don McCombs » Tue Mar 25, 2014 4:48 pm

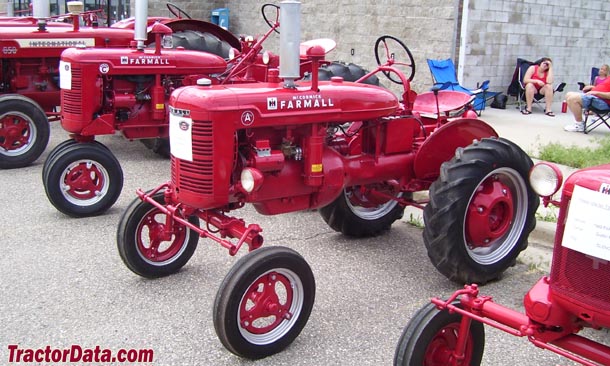

This photo from TractorData dot com shows you where the generator and cut-out were located.

Don McCombs
MD, Deep Creek Lake

Proud Member of Maryland Chapter 39

User avatar
artc
Cub Pro
Cub Pro
501 Club
501 Club
Posts: 1840
Joined: Sun Mar 30, 2003 10:25 am
Zip Code: 06457
eBay ID: cmtelephone
Tractors Owned: 1950 cubs (3), 1948 cub, 1941 A, 1948 H, 1963 B414, 1958 240U, 1947 Oliver 60 industrial, Oliver 70 industrial.1948 super AI (trailer queen), 1958 450.
Location: CT, Middletown

Re: A Starter Rod and other questions.

Postby artc » Tue Apr 01, 2014 10:55 am

completed 2.jpg


here is the alternator setup on my SA. you need to fabricate a bracket to move the alternator forward and up a little. I moved the tension arm up to the water outlet as well.

the a and the super a have different starter rods. the A is a push rod that you activate with your foot, as opposed to the pull rod on a SA. i'll try to get a couple more pictures for you tonight
You do not have the required permissions to view the files attached to this post.
'If they're tappin', they're not burnin'
http://www.ZagrayFarmMuseum.org

User avatar
CPIII
5+ Years
5+ Years
501 Club
501 Club
Posts: 669
Joined: Wed Sep 30, 2009 9:43 am
Zip Code: 77355
eBay ID: czechiii
Tractors Owned: 48 Cub SN 54XXX (Captain Crunch)
47 Farmall A (Patches)
Circle of Safety: Y
Location: Magnolia, Texas

Re: A Starter Rod and other questions.

Postby CPIII » Tue Apr 01, 2014 12:23 pm

Thanks a bunch Art....that is exactly what I was looking for a close up pic of the starter rod setup and the Alternator bracket.....if you could get the picture of the bracket that would be great. I think I know how to fabricate it but am looking for as many examples as I can find. As far as the starter rod.....you don't have to worry about that...I will wait hoping someone with a A of the same year range will eventually post some up close pics. As I don't have any rods or levers on my A ....so nothing to go by.
Charles Patek III
Some days - Chicken.......Some days - Feathers
Words to live by....

User avatar
artc
Cub Pro
Cub Pro
501 Club
501 Club
Posts: 1840
Joined: Sun Mar 30, 2003 10:25 am
Zip Code: 06457
eBay ID: cmtelephone
Tractors Owned: 1950 cubs (3), 1948 cub, 1941 A, 1948 H, 1963 B414, 1958 240U, 1947 Oliver 60 industrial, Oliver 70 industrial.1948 super AI (trailer queen), 1958 450.
Location: CT, Middletown

Re: A Starter Rod and other questions.

Postby artc » Tue Apr 01, 2014 6:19 pm

I used a piece of 1/4" plate 5" X 2" and welded the existing gen bracket to the top portion 3.5 inches forward of the lead edge of the plate to move the alternator forward and up. if I made another one, I would use a plate 2.5" X 5" to raise the gen bracket a little higher to clear the block.

I used a Hitachi 14231 alternator for this, but if you want to go one wire use the NAPA one for $44 with core.

the upper bracket simply has an extender on it to reach the alternator, and is moved up from the lower water inlet to the fan attachment point.

I took some pictures tonight, i'll send them in the morning
'If they're tappin', they're not burnin'
http://www.ZagrayFarmMuseum.org

User avatar
CPIII
5+ Years
5+ Years
501 Club
501 Club
Posts: 669
Joined: Wed Sep 30, 2009 9:43 am
Zip Code: 77355
eBay ID: czechiii
Tractors Owned: 48 Cub SN 54XXX (Captain Crunch)
47 Farmall A (Patches)
Circle of Safety: Y
Location: Magnolia, Texas

Re: A Starter Rod and other questions.

Postby CPIII » Tue Apr 01, 2014 7:19 pm

Thanks again....that exactly what I was looking for.....I used the hitachi on my cub and was planning on using it again. I really appreciate the help.
Charles Patek III
Some days - Chicken.......Some days - Feathers
Words to live by....

SONNY
10+ Years
10+ Years
501 Club
501 Club
Posts: 2596
Joined: Thu Nov 09, 2006 11:26 pm
Zip Code: 61722

Re: A Starter Rod and other questions.

Postby SONNY » Tue Apr 01, 2014 10:35 pm

I will have to look at my A tomorrow and see how it is!---I know it has a curly end on it and it sits WAY low on the tractor,-- hard to see/find and , don't take this to the bank YET, BUT I think the starter switch/button is on the bottom side of the starter and not on top side as the Super A is!----A LOT of different parts between A and Super A! thanks; sonny

User avatar
artc
Cub Pro
Cub Pro
501 Club
501 Club
Posts: 1840
Joined: Sun Mar 30, 2003 10:25 am
Zip Code: 06457
eBay ID: cmtelephone
Tractors Owned: 1950 cubs (3), 1948 cub, 1941 A, 1948 H, 1963 B414, 1958 240U, 1947 Oliver 60 industrial, Oliver 70 industrial.1948 super AI (trailer queen), 1958 450.
Location: CT, Middletown

Re: A Starter Rod and other questions.

Postby artc » Wed Apr 02, 2014 9:25 am

alternator tension bracket.jpg


the tension arm (although it is a little hard to see) is attached to a 2" extension bolted to the same location as the radiator support. it reused the stud removed from the former location of the bracket.

alternator bracket.jpg


there is a close up of the bracket.
You do not have the required permissions to view the files attached to this post.
'If they're tappin', they're not burnin'
http://www.ZagrayFarmMuseum.org

jeb2
Posts: 15
Joined: Thu Sep 05, 2013 12:40 pm
Zip Code: 45601
Tractors Owned: 1945 International A
1950 Super A Demonstrator Basket Case
1987 Cub Cadet 1810
1989 Cub Cadet 1811

Re: A Starter Rod and other questions.

Postby jeb2 » Wed Apr 02, 2014 11:10 pm

Here is a pic of my 1945 International A starter and rod. I just glanced at the parts manual but I did not see a diagram/parts breakdown of the starter rod. The only info I found was on page 67 giving the part number of the starter rod.
You do not have the required permissions to view the files attached to this post.

User avatar
CPIII
5+ Years
5+ Years
501 Club
501 Club
Posts: 669
Joined: Wed Sep 30, 2009 9:43 am
Zip Code: 77355
eBay ID: czechiii
Tractors Owned: 48 Cub SN 54XXX (Captain Crunch)
47 Farmall A (Patches)
Circle of Safety: Y
Location: Magnolia, Texas

Re: A Starter Rod and other questions.

Postby CPIII » Thu Apr 03, 2014 6:48 am

Awesome.....that is exactly what I was looking for!! Thanks Art & Jeb!!
Art is was sort of hard looking at the pictures as the glare from the ultra shiny paint job was blinding....GREAT PAINT JOB!!!

Thank you both for your time! It is very much appreciated!
Charles Patek III
Some days - Chicken.......Some days - Feathers
Words to live by....
