Farmall A transmission rebuild

Postby bald » Mon Mar 12, 2007 11:22 am

We are going through a replacment transmission for a Farmall Super A. 1. The IH service manual for the A talks about backlash values, but doesn't give any preload information. Should we just ignore preload or do those values/specs exist somewhere?
2. There is a transmission oiler gear on the countershaft which is missing one tooth. It looks like an an aluminum(?) gear. Can't tell for sure,but doesnt look like it meshes with anything. Will the missing tooth cause any problems if we don't replace it.
I'm just learning and want to get it right.
Thanks, bald, Southeast Georgia
Another wonderful day in paradise.
'66 IH Cub w/fast hitch and '41 JD LA
User avatar
bald
5+ Years
5+ Years

Posts: 112
Joined: Sun Jul 10, 2005 9:04 pm
Location: Woodbine, , Georgia
Zip Code: 31569
Tractors Owned: 66 IH Cub w/fasthitch and 41 JD LA

Postby Brandon Webb » Tue Mar 13, 2007 10:15 pm

A cubs preload sets to 8lbs, I'd at least set it to that. The oil gear shouldn't matter if it doesn't mesh with anything. Brandon.
User avatar
Brandon Webb
5+ Years
5+ Years

Posts: 2163
Joined: Tue Sep 20, 2005 4:32 pm
Location: London, Kentucky
Zip Code: 40741
Tractors Owned: 1947 Farmall Cub #1024
1957 Farmall Cub High Crop
1975 International Cub
1977 International Cub
1978 International Cub

Postby Jim Becker » Tue Mar 13, 2007 11:58 pm

Been a long time since I have been into an A differential. Aren't the bearings all ball bearings? I think you just take out the end play but don't preload it.

The oil slinger should turn freely on the lower shaft and mesh with a gear on the upper shaft. I would rather not have a tooth missing on it, but not sure it absolutely has to be changed. As I recall, the gear is die cast zinc.
User avatar
Jim Becker
Team Cub
Team Cub

Posts: 11972
Joined: Sun Feb 02, 2003 3:14 pm
Location: MN
Zip Code: 55319
Circle of Safety Award
Circle of Safety: Y

Postby 2 Busy » Wed Mar 14, 2007 1:17 am

Also the oiler gear is for keeping the gear oil moving while using the pto with the tractor stationary. the other gears will distribute the oil while the tractor is moving. Don't know if the one tooth will couse problems.
2 Busy
5+ Years
5+ Years

Posts: 219
Joined: Sun Jul 30, 2006 10:55 pm
Location: okla

Postby bald » Wed Mar 14, 2007 8:14 am

Thanks for the help guys.
Jim, you're way ahead of me in A transmission experience; the last transmission I was into was on my 1946 Chevy in high school. You're right about the bearings-all ball bearings.
Brandon, I was wrong about the oiler gear not meshing. It does mesh with an upper gear.
2 busy, it does make sense that they added the oiler gear to help lube during stationary work off the pto.
Bob Schroer, one of our Woodbine Antique Tractor Club members is helping me out on this. He knows a lot but doesn't see too well 8) and I see well but don't know too much :? ..quite a team.
Thank you, bald
Another wonderful day in paradise.
'66 IH Cub w/fast hitch and '41 JD LA
User avatar
bald
5+ Years
5+ Years

Posts: 112
Joined: Sun Jul 10, 2005 9:04 pm
Location: Woodbine, , Georgia
Zip Code: 31569
Tractors Owned: 66 IH Cub w/fasthitch and 41 JD LA

Postby Super A » Wed Mar 14, 2007 2:09 pm

bald wrote:Thanks for the help guys.
Jim, you're way ahead of me in A transmission experience; the last transmission I was into was on my 1946 Chevy in high school. You're right about the bearings-all ball bearings.
Brandon, I was wrong about the oiler gear not meshing. It does mesh with an upper gear.
2 busy, it does make sense that they added the oiler gear to help lube during stationary work off the pto.
Bob Schroer, one of our Woodbine Antique Tractor Club members is helping me out on this. He knows a lot but doesn't see too well 8) and I see well but don't know too much :? ..quite a team.
Thank you, bald


Bald,

I got your IM and just have been busy......anyway, I am like Jim--I had prefer no teeth be missing, but I am not 100% sure it's a matter of life and death if some are. Do you plan to run the PTO?

Al
White Demo Super A Restoration Updates

Let us pray for farmers and all who prepare the soil for planting, that the seeds they sow may lead to a bountiful harvest.
User avatar
Super A
10+ Years
10+ Years

Posts: 3461
Joined: Mon Jan 26, 2004 10:53 am
Location: NC, Jacksonville area
Zip Code: 28521
Tractors Owned: 1949 Cub "The Paperweight"
Cub powered IH 52R combine
Grandfather's 1948 Super A
White demo Super A-"Ol Whitey"
1950 Super A "Old Ugly"
1954 Super A-1
856
Buncha other junk
Circle of Safety Award
Circle of Safety: Y

Postby bald » Wed Mar 14, 2007 7:13 pm

Al, I had wanted the SA to be available as a backup mower. We already have a woods L59 mower deck.
An email was sent to JP Salvage looking for the oiler gear, but no response yet. I'm scared to look at Case/IH for fear the price will give me a heart attack, but it may get to that.
I'm flying out in the morning to Kansas to attend a funeral so will be out of contact for a few days.
Thanks, Harvey
Another wonderful day in paradise.
'66 IH Cub w/fast hitch and '41 JD LA
User avatar
bald
5+ Years
5+ Years

Posts: 112
Joined: Sun Jul 10, 2005 9:04 pm
Location: Woodbine, , Georgia
Zip Code: 31569
Tractors Owned: 66 IH Cub w/fasthitch and 41 JD LA

Postby Daniel H. » Wed Mar 14, 2007 7:48 pm

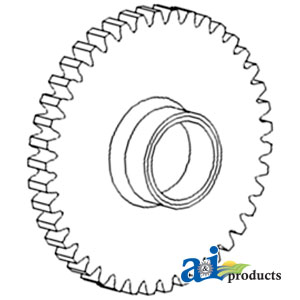

I looked at Cash/IH for you, you don't want to know. As Bermuda Ken Updike always tells me, just be glad you can buy parts for a 50 year old tractor. A&I (after-market) lists one for $112.00 I have bought some of their parts before and the quality was good. I think someone on the board is an A&I dealer.



https://www.aicatalog.com/index.cfm?id=Brand7&item=354643R11
The four most expensive words in tractor restoration: "We might as well..."
Daniel H.
10+ Years
10+ Years

Posts: 552
Joined: Mon Feb 03, 2003 1:18 pm
Location: NC, Yadkinville

Postby bald » Wed Mar 14, 2007 8:14 pm

Daniel H.
Bless you! :D I just ordered the gear from A&I. I'll let you all know how this turns out.
take care, Harvey
Another wonderful day in paradise.
'66 IH Cub w/fast hitch and '41 JD LA
User avatar
bald
5+ Years
5+ Years

Posts: 112
Joined: Sun Jul 10, 2005 9:04 pm
Location: Woodbine, , Georgia
Zip Code: 31569
Tractors Owned: 66 IH Cub w/fasthitch and 41 JD LA

Postby John *.?-!.* cub owner » Wed Mar 14, 2007 9:28 pm

Bald, you might give JP a call. I have sent them a couple emials lately and no reply. They may be having trouble with their system
"The Constitution is not an instrument for the government
to restrain the people, it is an instrument for the people to restrain the
government lest it come to dominate our lives and interests." Patrick Henry
User avatar
John *.?-!.* cub owner
Team Cub Guide
Team Cub Guide

Posts: 19551
Joined: Sun Feb 02, 2003 2:09 pm
Location: Mo, Potosi
Zip Code: 63664
Tractors Owned: 47, 48, 49 cub plus Wagner loader & other attachments. 41 Farmall H.

Postby 2 Busy » Wed Mar 14, 2007 9:41 pm

I ordered one last year for $60. I think valu-bilt is where i ordered it.
