How to convert a Sediment Bowl valve to a ball valve

Postby MaineDad » Sun Oct 04, 2009 12:56 pm


I hope this helps anyone else who wants to do this conversion. It took me a few trips to the hardware store to figure it out, but it was worth it.

Here are the specific items in order from the gas tank all the way to the carb;

3/8 2-1/2" brass nipple

3/8 brass 90 degree elbow

3/8 1-1/2" brass nipple

3/8 Industrial Ball Valve

3/8 x 1/4 hex bushing

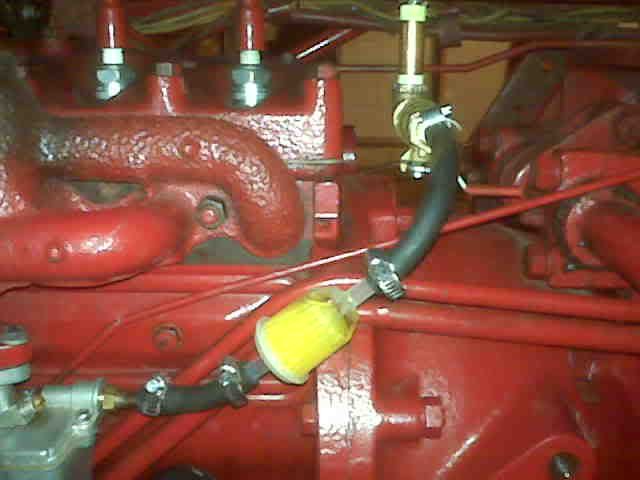

* 3/8 to 1/4" pex (part description not available so see picture below)

Hose clamp

1/4" fuel line (bought at Napa)

Hose clamp

Inline fuel filter (Napa part # 3011)

Hose clamp

1/4" fuel line

Hose clamp

Leave the existing compression fitting in the carb and then use hack saw to cut steel fuel line. I left two inches of the steel line and pushed the 1/4" fuel line right over it and clamped it down tight.

The only other cutting I had to do was to take about and inch off the handle of the ball valve because it would hit the large nut on the hydraulic rock shaft. Just use a hack saw and then file the end to remove any sharp edges. Feel free to ask any questions.

* Image
Micah in Maine
1952 Farmall Cub

Eugene
Team Cub Mentor
Team Cub Mentor
501 Club
501 Club
Posts: 15050
Joined: Fri Jul 02, 2004 9:52 pm
Zip Code: 65051
Circle of Safety: Y
Location: Mo. Linn

Re: How to convert a Sediment Bowl valve to a ball valve

Postby Eugene » Sun Oct 04, 2009 4:11 pm

I installed the ball valve pretty much as shown above. I used a close nipple between the fuel tank and ball valve. I then bent the ball valve lever into an L shape to clear the engine block.
I have an excuse. CRS.

User avatar
Bigdog
Cub Pro
Cub Pro
501 Club
501 Club
Posts: 24066
Joined: Sun Feb 02, 2003 12:50 pm
Zip Code: 43113
Circle of Safety: Y
Location: OH, Circleville

Re: How to convert a Sediment Bowl valve to a ball valve

Postby Bigdog » Sun Oct 04, 2009 8:59 pm

I would like to state that farmallcub.com and the board moderators do not advocate the use of rubber fuel lines for safety reasons. I realize that it is up to individual preference but I really feel the need to point out that this is not endorsed by the board administrator or moderators.
Bigdog
If you can't fix it with a hammer, you've got an electrical problem.

My wife says I don't listen to her. - - - - - - - - Or something like that!


http://www.cubtug.com
