Re: Touch control hydraulics

Postby Cubbuilder » Tue Mar 01, 2022 8:20 am

Thank you Dale, I will do that. Is there a brand of hydraulic fluid recommened for the cub TC unit?

User avatar
Don McCombs
Team Cub Mentor
Team Cub Mentor
Posts: 16241
Joined: Mon Feb 03, 2003 6:45 am
Zip Code: 21550
Tractors Owned: "1950 Something" Farmall Cub
1957 Farmall Cub w/FH
1977 International Cub w/FH
1978 International Cub
1948 Farmall Super A
Circle of Safety: Y
Location: MD, Deep Creek Lake

Re: Touch control hydraulics

Postby Don McCombs » Tue Mar 01, 2022 9:00 am

CaseIH Hy-Tran is the preferred fluid. BUT, any MS1207 or MS1209 compliant fluid will be suitable. NAPA, TSC and many others all carry one.
Don McCombs
MD, Deep Creek Lake

Proud Member of Maryland Chapter 39
Circle of Safety

SamsFarm
501 Club
501 Club
Posts: 1338
Joined: Wed Jan 20, 2021 8:21 pm
Zip Code: 44410
Tractors Owned: 1968 Cub Fast Hitch
LF-1 Platform Carrier
144 Cultivators
L-F194 Plow(s)
F38 Disk
L-F3 Spring Tooth Harrow
Fast Hitch CS Bell 60 Grain Mill
Home Made Fast Hitch Potato Plow
54A Blade

Couple 1948 Cubs
172 Runner Planter
53 Fertilizer
Cub-3 Field Cultivator
Cub-189 Two Way Plow
Cub-22 Sickle Bar Mower
Mechanical Transplanter with side mount barrel (needs a fast hitch adapter) :)

Misc Belly Mowers

Wish List
International 100 Fast Hitch Blade
Mott Fast Hitch Flail Mower

Wish Wish Wish List
Fast Hitch Rotary Hoe
4E hammer mill
Location: Ne Ohio

Re: Touch control hydraulics

Postby SamsFarm » Tue Mar 01, 2022 3:55 pm


User avatar
Glen
10+ Years
10+ Years
Posts: 5396
Joined: Mon Mar 19, 2012 7:33 pm
Zip Code: 00000
Tractors Owned: 1956 Farmall Cub with Fast Hitch, F-11 plow, Disc, Cultivator, Cub-22 mower
Circle of Safety: Y
Location: Wa.

Re: Touch control hydraulics

Postby Glen » Tue Mar 01, 2022 8:07 pm

Hi,
Below is a post I made about checking or changing the Touch Control fluid, and removing the air from the system, if you need it. :)

viewtopic.php?f=1&t=106664

Cubbuilder
Posts: 20
Joined: Sun Oct 17, 2021 7:01 pm
Zip Code: 54456

Re: Touch control hydraulics

Postby Cubbuilder » Sat Mar 05, 2022 10:10 am

Thank you for the advice, I picked up HY-Tran fluid from CaseIH.

Cubbuilder
Posts: 20
Joined: Sun Oct 17, 2021 7:01 pm
Zip Code: 54456

Re: Touch control hydraulics

Postby Cubbuilder » Thu Mar 10, 2022 8:41 am

Good morning all, ran into a setback assembling my touch control unit. The spring and plastic check valve, part numbers 350 668 R1 and 354 057 R2 are unserviceable and wondered if anyone could recommend a source for those parts? thanks Bill.

Jim Becker
Team Cub
Team Cub
Posts: 16360
Joined: Sun Feb 02, 2003 2:59 pm
Zip Code: 55319
Circle of Safety: Y
Location: MN

Re: Touch control hydraulics

Postby Jim Becker » Thu Mar 10, 2022 12:58 pm

New replacements seem to be fairly easy to find. Looks like the spring part number is now 13786AA.

Cubbuilder
Posts: 20
Joined: Sun Oct 17, 2021 7:01 pm
Zip Code: 54456

Re: Touch control hydraulics

Postby Cubbuilder » Thu Mar 10, 2022 8:06 pm

Thank you Jim, are you referring to Case IH new parts?...
Also does anyone see a reason why I shouldn't replace the hy-piston with the older style piston with the tapered yoke, my yoke is badly worn and I have an older style piston and yoke in great shape, any thoughts on this?

Jim Becker
Team Cub
Team Cub
Posts: 16360
Joined: Sun Feb 02, 2003 2:59 pm
Zip Code: 55319
Circle of Safety: Y
Location: MN

Re: Touch control hydraulics

Postby Jim Becker » Thu Mar 10, 2022 8:53 pm

Yes, CaseIH new parts number. I can't answer the piston question.

LyleDoe
Posts: 7
Joined: Sun Jan 02, 2022 1:04 pm
Zip Code: 45429
Location: Kettering, OH

Re: Touch control hydraulics

Postby LyleDoe » Sat Mar 12, 2022 11:50 am

I have been following this thread as I am thinking of rebuilding my lift control. It is a 1952 . I do not see any obvious signs of leaking but I do know the LC does not work (the guy I bought it from told me). I took off the hood and I see this "rag" stuffed down in the opening on top side of LC. I just thought I would chime in for advice! This rag is so tight I cannot pull it out with my fingers! I am about to get a pair of pliers to yank on it! But again I thought (being new to this) I would ask for your guys thoughts! Is this rag a sign that I should rebuild the LC? The LC # 354383R3

I was going to post a picture but am working on figuring that out!

User avatar
Dale Finch
10+ Years
10+ Years
Posts: 5993
Joined: Tue Apr 27, 2010 11:34 am
Zip Code: 27517
Tractors Owned: '51 Cub #140966 "Bruno" with Woods 59 mower
'55 Cub #187541 "Betty" with Fast Hitch
'55 Cub #190482 "Ben" with Woods 42 mower
'55 Cub #191739 "Bertha" with Woods 42 mower
'56 Cub #194370 "Boris" with Mott Flail mower
Circle of Safety: Y
Location: NC, Chapel Hill

Re: Touch control hydraulics

Postby Dale Finch » Sat Mar 12, 2022 1:05 pm

Is the rag on the SIDE toward the top (if yes, which side, left or right), or on the actual TOP of the Touch Control block?
The only opening I can think of on the top is the Welch ("expansion") plug. This could have been leaking.

If the rag was on the left side toward the top, it might be in the filler plug hole. We need more info, and you might start a separate thread...
Dale Finch
Circle of Safety

LyleDoe
Posts: 7
Joined: Sun Jan 02, 2022 1:04 pm
Zip Code: 45429
Location: Kettering, OH

Re: Touch control hydraulics

Postby LyleDoe » Sat Mar 12, 2022 1:59 pm

OK, Thanks Dale - It is the opening on the top of the touch control. As if you are looking straight down. I never saw it until I took off the hood. The opening is not a circle but a half circle with a flat side (like a capital D). The flat side is towards the driver. But it is on the top side. I don't know if I am allowed to post a link (??) but I will try this:

http://savethecub.com/manuals/parts/cub ... style1.htm

The rag is stuffed down that opening on the very top (If you were to set a glass of water on the top).

SamsFarm
501 Club
501 Club
Posts: 1338
Joined: Wed Jan 20, 2021 8:21 pm
Zip Code: 44410
Tractors Owned: 1968 Cub Fast Hitch
LF-1 Platform Carrier
144 Cultivators
L-F194 Plow(s)
F38 Disk
L-F3 Spring Tooth Harrow
Fast Hitch CS Bell 60 Grain Mill
Home Made Fast Hitch Potato Plow
54A Blade

Couple 1948 Cubs
172 Runner Planter
53 Fertilizer
Cub-3 Field Cultivator
Cub-189 Two Way Plow
Cub-22 Sickle Bar Mower
Mechanical Transplanter with side mount barrel (needs a fast hitch adapter) :)

Misc Belly Mowers

Wish List
International 100 Fast Hitch Blade
Mott Fast Hitch Flail Mower

Wish Wish Wish List
Fast Hitch Rotary Hoe
4E hammer mill
Location: Ne Ohio

Re: Touch control hydraulics

Postby SamsFarm » Sat Mar 12, 2022 2:17 pm

LyleDoe wrote:OK, Thanks Dale - It is the opening on the top of the touch control. As if you are looking straight down. I never saw it until I took off the hood. The opening is not a circle but a half circle with a flat side (like a capital D). The flat side is towards the driver. But it is on the top side. I don't know if I am allowed to post a link (??) but I will try this:

http://savethecub.com/manuals/parts/cub ... style1.htm

The rag is stuffed down that opening on the very top (If you were to set a glass of water on the top).

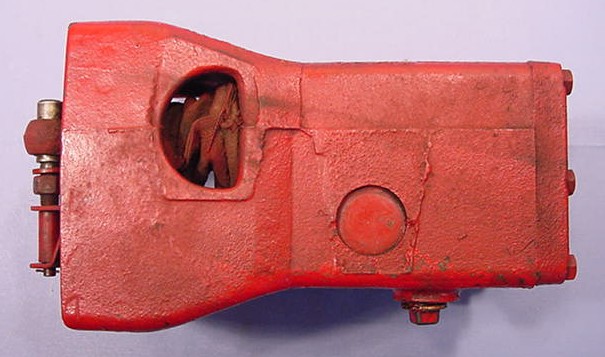

Take the rag out, the "D" shaped hole just is the way they made the casting. This D shaped hole is naturally open and not plugged in normal operation

After you get the rag out, you can see how the D shaped opening is visible from the front!

indy61
10+ Years
10+ Years
Posts: 1291
Joined: Fri Jan 25, 2008 9:02 am
Zip Code: 00000
Circle of Safety: Y

Re: Touch control hydraulics

Postby indy61 » Sat Mar 12, 2022 5:14 pm

Perhaps what you're seeing is the protective leather boot.


User avatar
Glen
10+ Years
10+ Years
Posts: 5396
Joined: Mon Mar 19, 2012 7:33 pm
Zip Code: 00000
Tractors Owned: 1956 Farmall Cub with Fast Hitch, F-11 plow, Disc, Cultivator, Cub-22 mower
Circle of Safety: Y
Location: Wa.

Re: Touch control hydraulics

Postby Glen » Sat Mar 12, 2022 8:57 pm

Hi,
LyleDoe, the leather boot is on the part of the piston that sticks out of the unit. It is supposed to be there, if it is there.

The Touch Control has to have fluid to work, if the fluid is low, it won't work.
I would check the fluid level and see if it has fluid.

The Cub operator's manual says to not run the engine if the fluid in the Touch Control is low, the pump has to have fluid for lubrication. It can damage the pump running the engine with low fluid.

My first post on this page has info about checking and changing the Touch Control fluid.
If it doesn't work, I would put in fluid and see if it works.
The arms need to be in the rear or down position to check the exact fluid level, which should be up to the filler plug hole. :)
